Instant Engagement. Confident Control. Built for the Trail.
The ARC MT-088F/R is designed for mountain bikers seeking quick pedal response and dependable performance on challenging trails. Featuring a high-engagement 180 POE system with 6 pawls and 2 teeth, it delivers responsive power transfer for technical climbs, trail riding, and everyday MTB adventures.

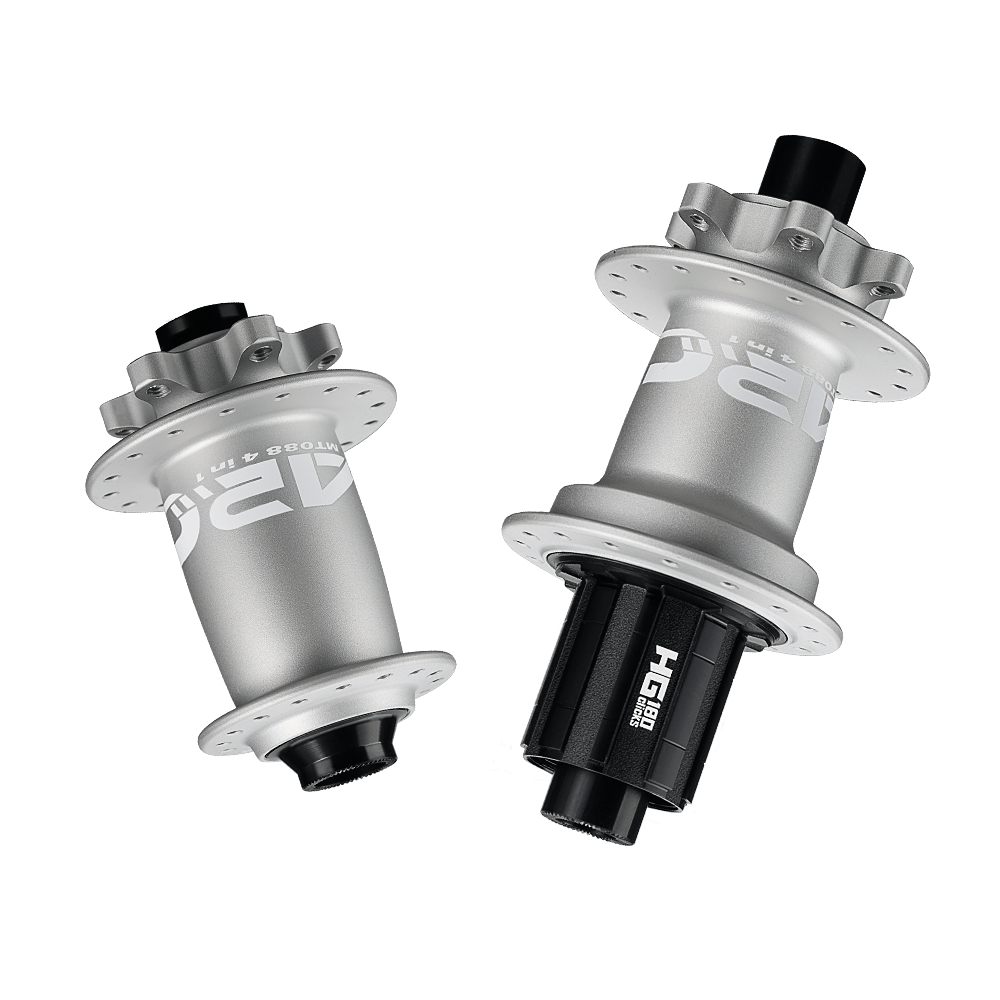

Built with a forged AL6061-T6 aluminum hub shell and AL7075 aluminum components, the hub set weighs 451.7 g (148.9 g front / 302.8 g rear). Its versatile QR and thru-axle options make it a practical choice for compatible non-Boost MTB wheel builds.

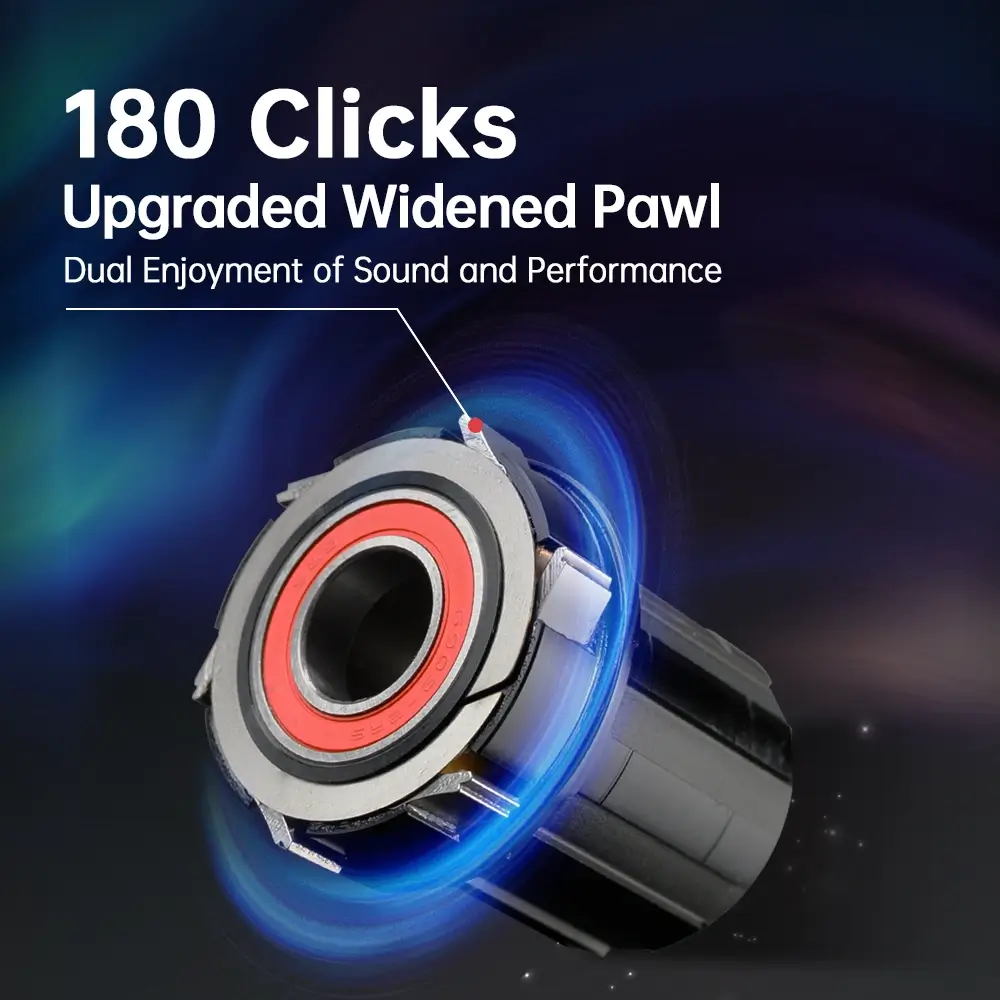

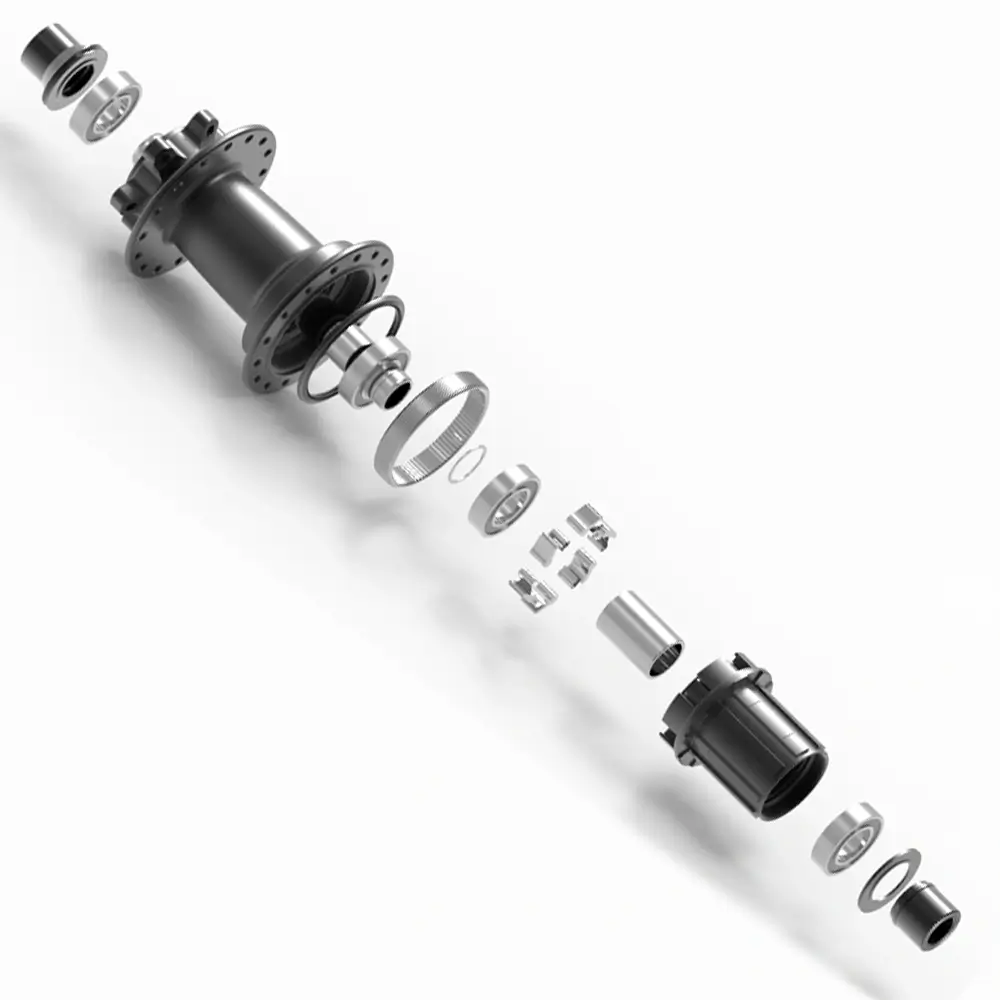

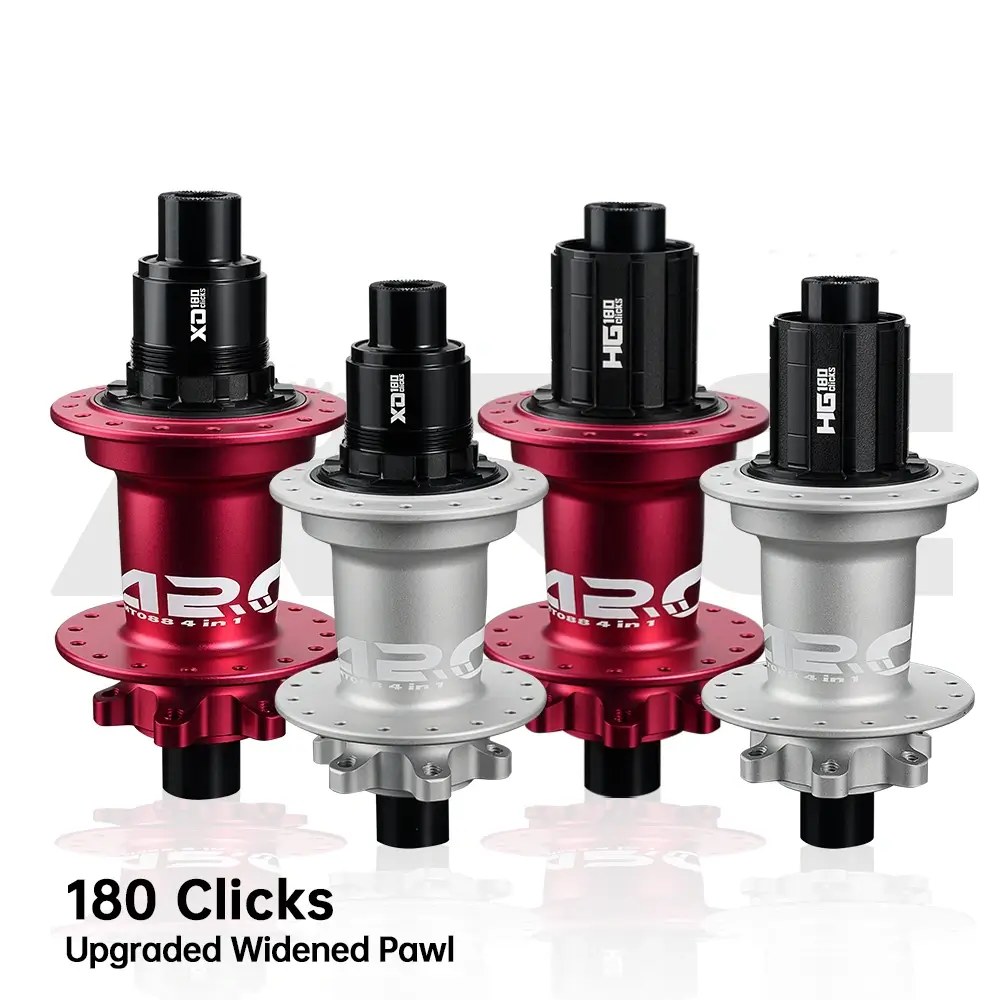

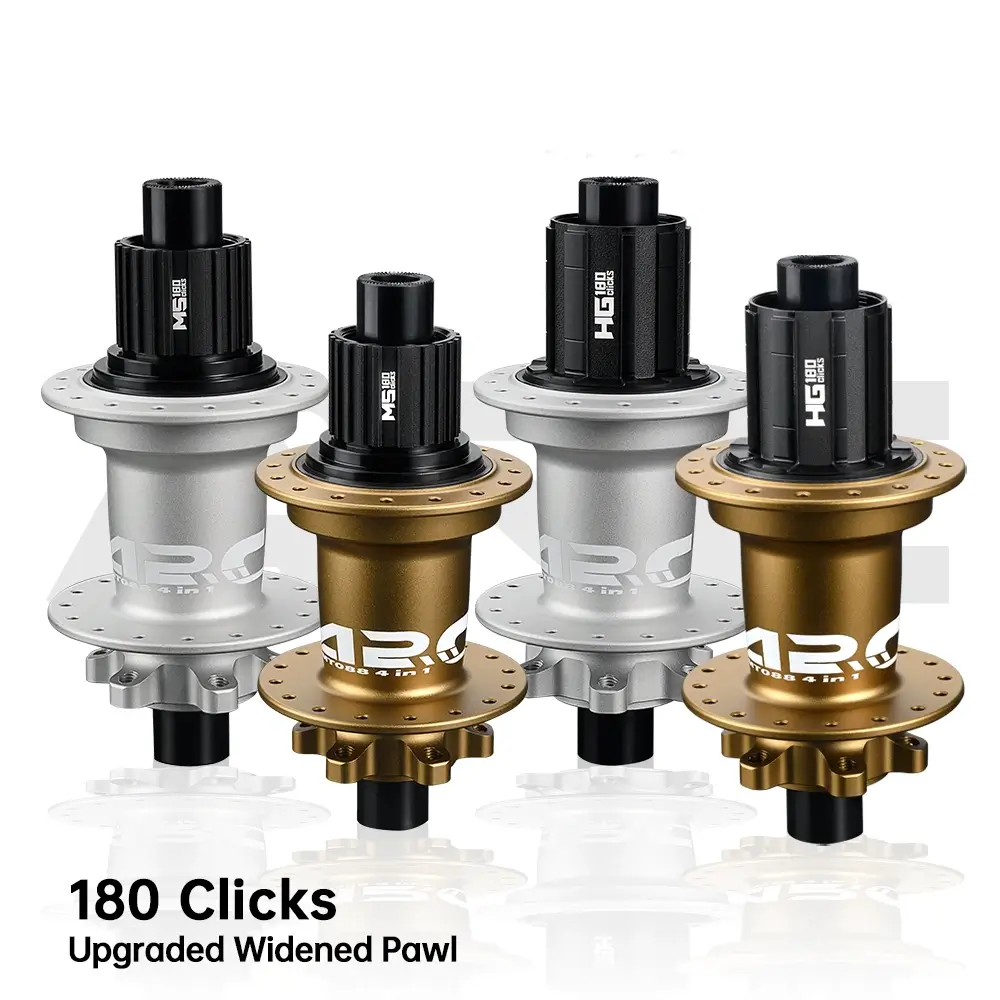

180-Point High-Engagement System
The upgraded 6-pawl, 2-tooth mechanism provides quick engagement with a 2° engagement angle, helping you respond faster during technical climbs and frequent pedal movements.
Precision Aluminum Construction
The forged aluminum alloy construction provides a strong, durable foundation for demanding mountain bike riding.
Versatile Axle Compatibility

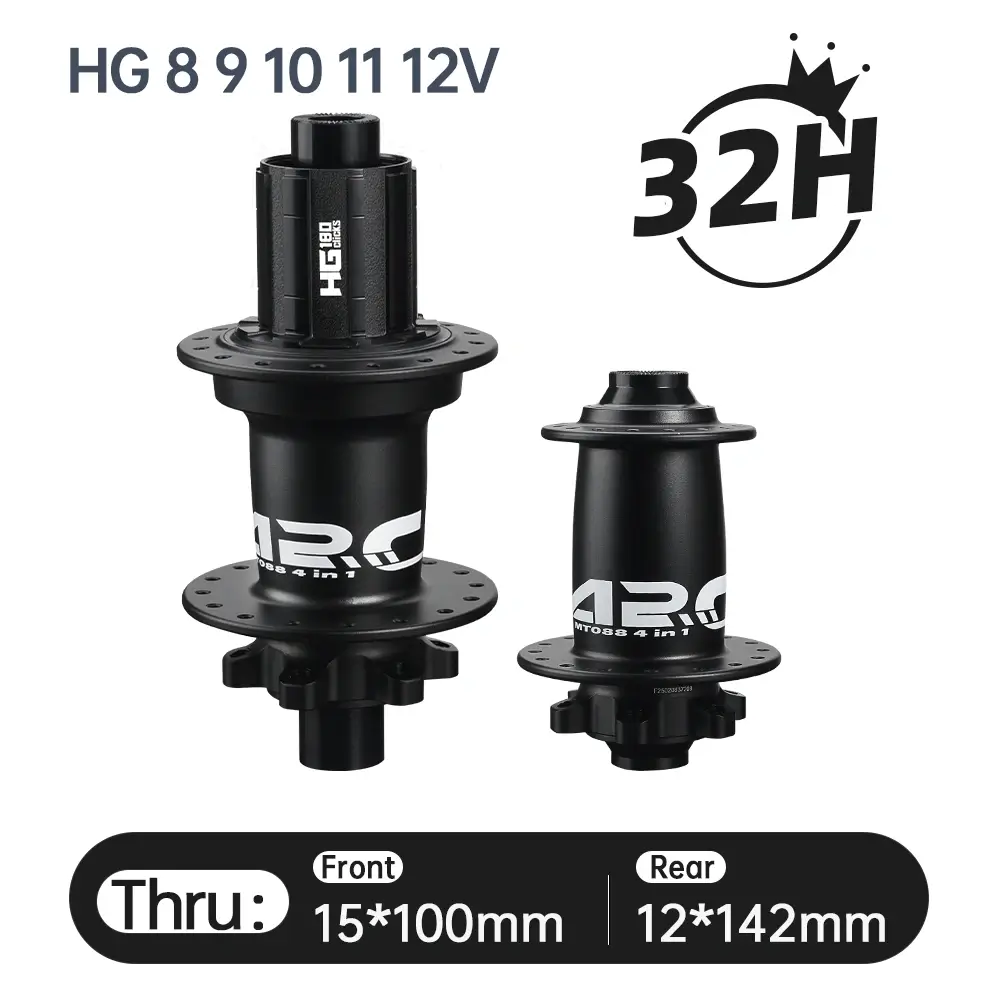

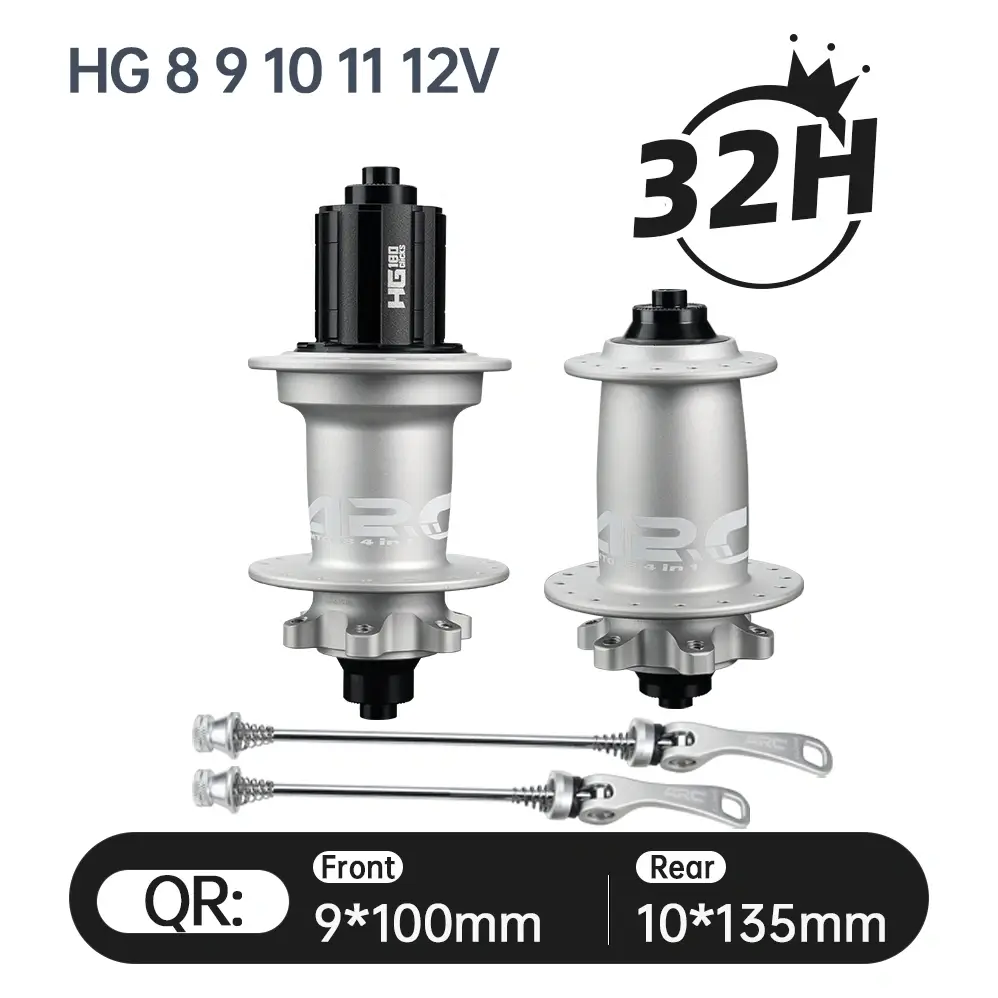

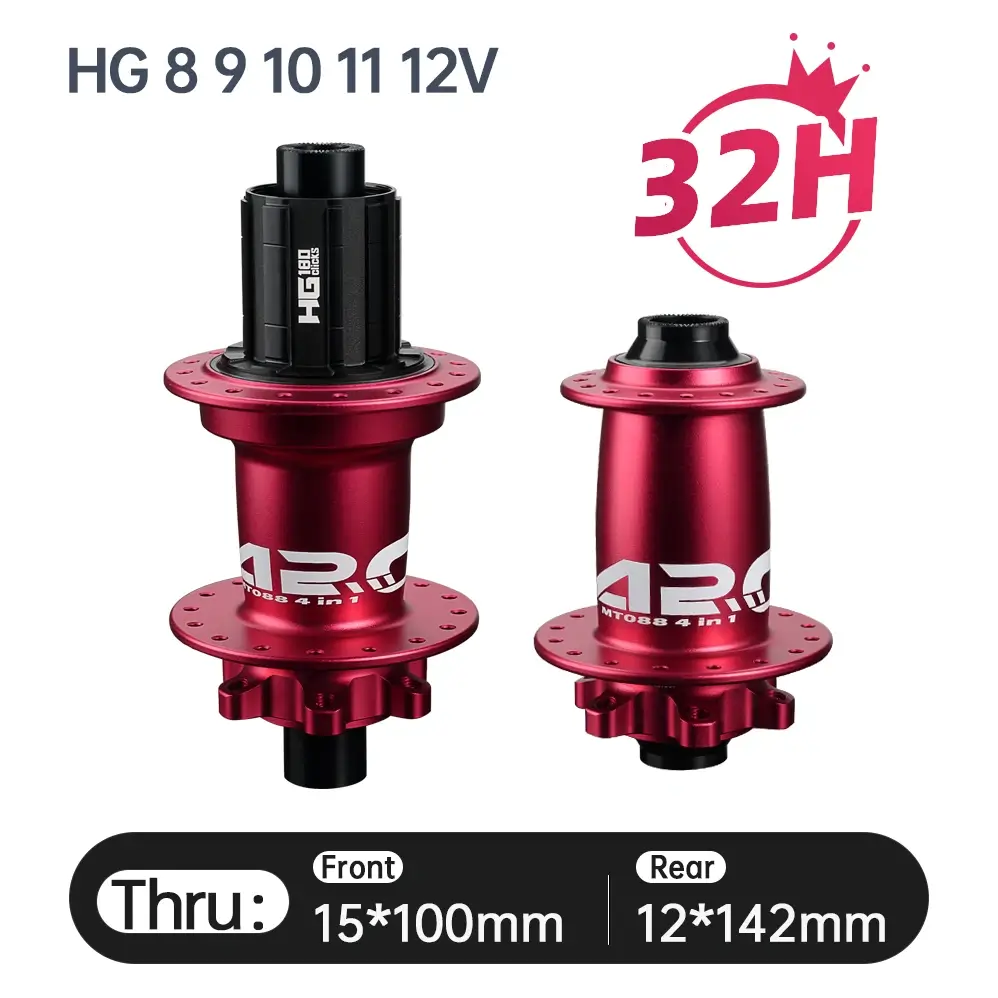

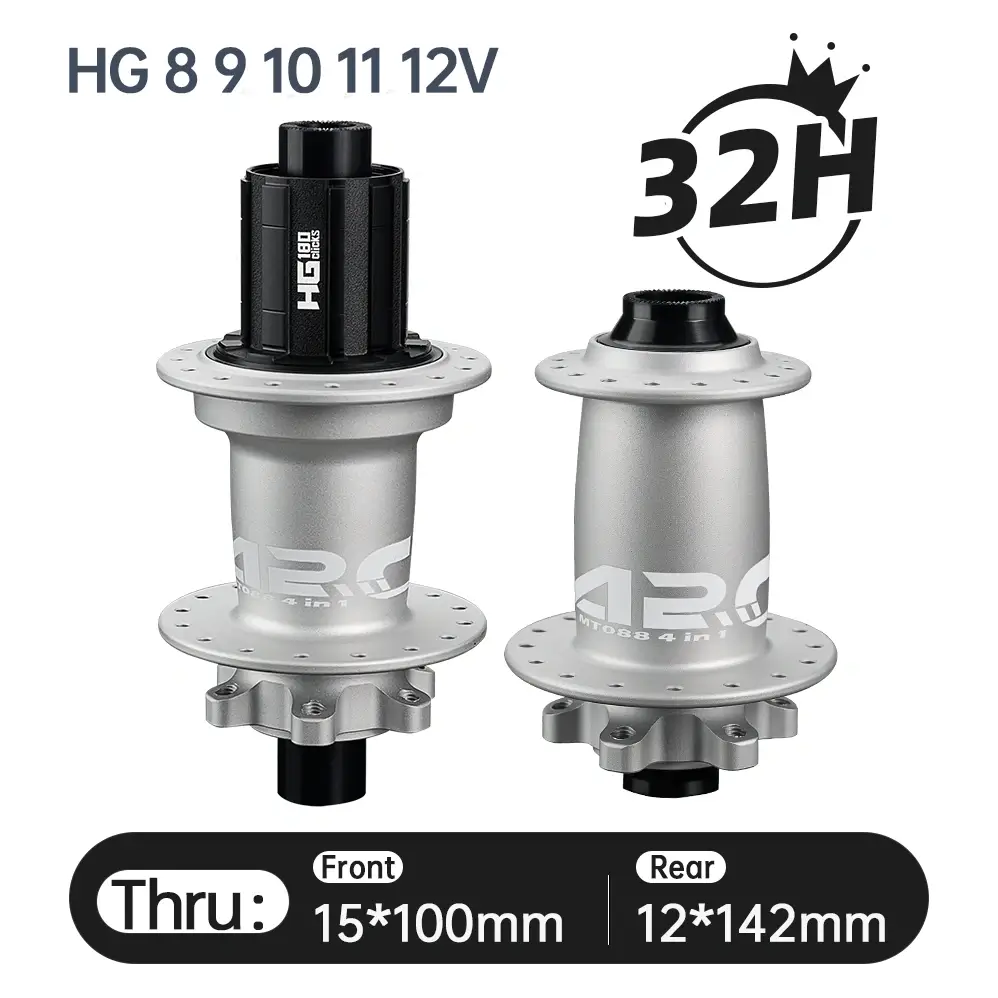

Choose between QR (9×100 mm front / 10×135 mm rear) and thru-axle (15×100 mm front / 12×142 mm rear) configurations to match your bike.
Reliable Wheel-Build Design
Featuring 32H J-Bend spoke holes, a 6-bolt disc brake interface, and sealed bearings for compatible MTB wheel builds.
The ARC MT-088F/R is an excellent option for riders upgrading their MTB wheels with responsive engagement, versatile compatibility, and dependable construction.
| Specification | Details |
|---|---|
| Brand | ARC |
| Model | MT-088F/R |
| Product Type | MTB Disc Brake Hub Set |
| Application | Mountain Bike / MTB |
| Hub Position | Front and Rear |

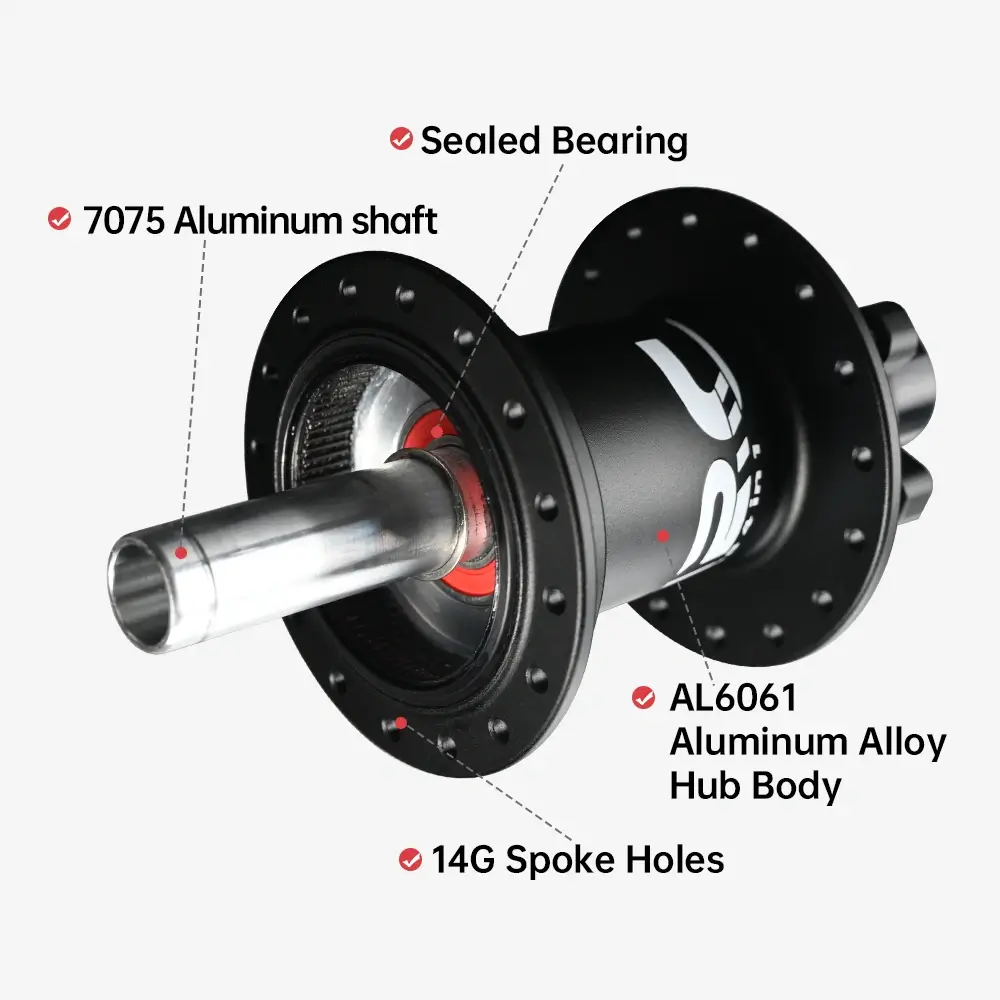

| Hub Shell Material | Forged AL6061-T6 Aluminum Alloy |
| Axle Material | AL7075 Aluminum Alloy |

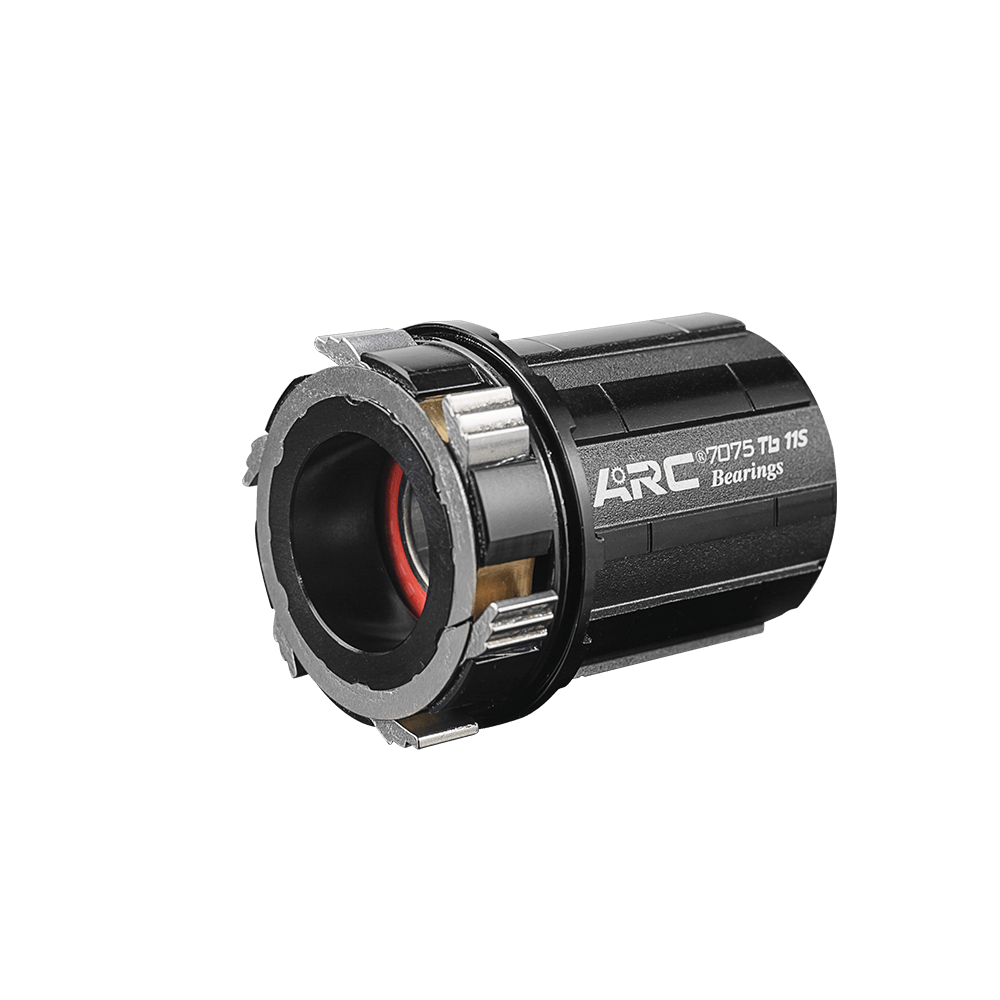

| Freehub Body Material | AL7075 Aluminum Alloy |
| Surface Finish | Anodized |
| Brake Type | Disc Brake |
| Rotor Mount | 6-Bolt |
| Hub Spacing Standard | Non-Boost |
| Axle Options | Quick Release (QR) / Thru-Axle |

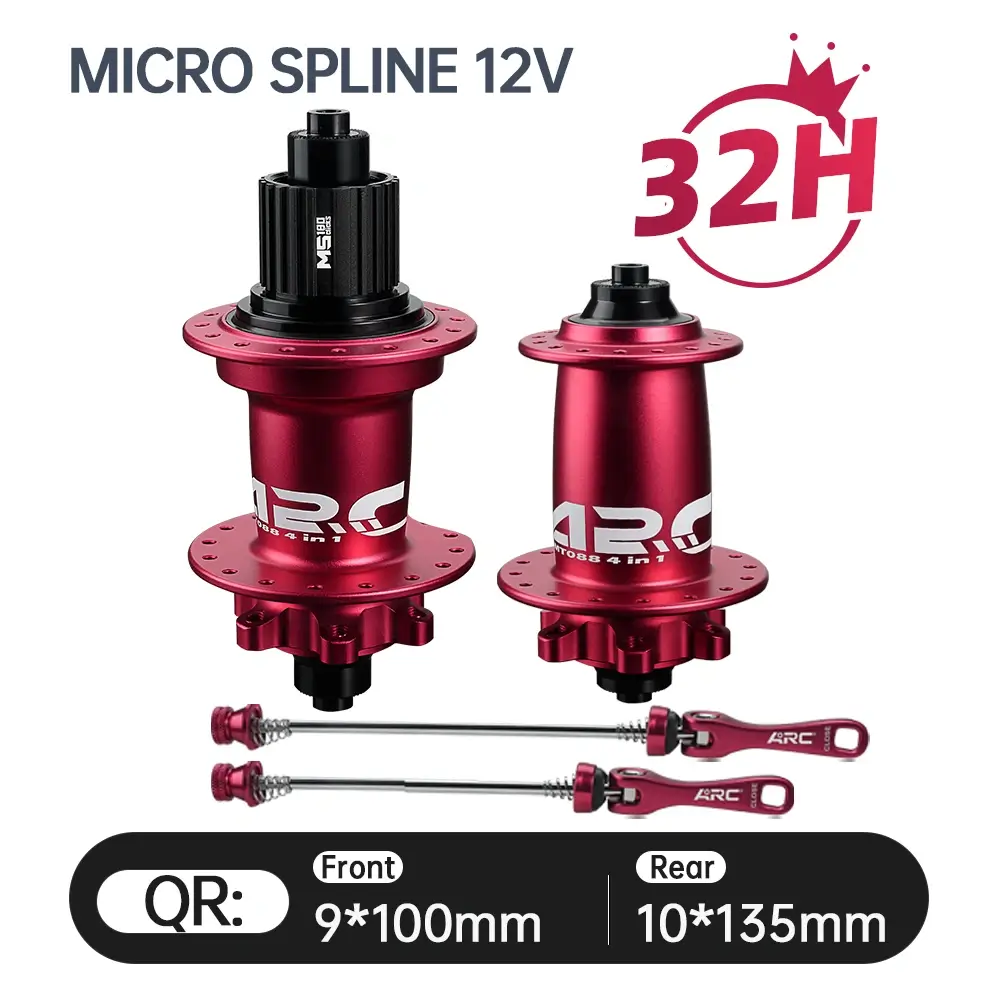

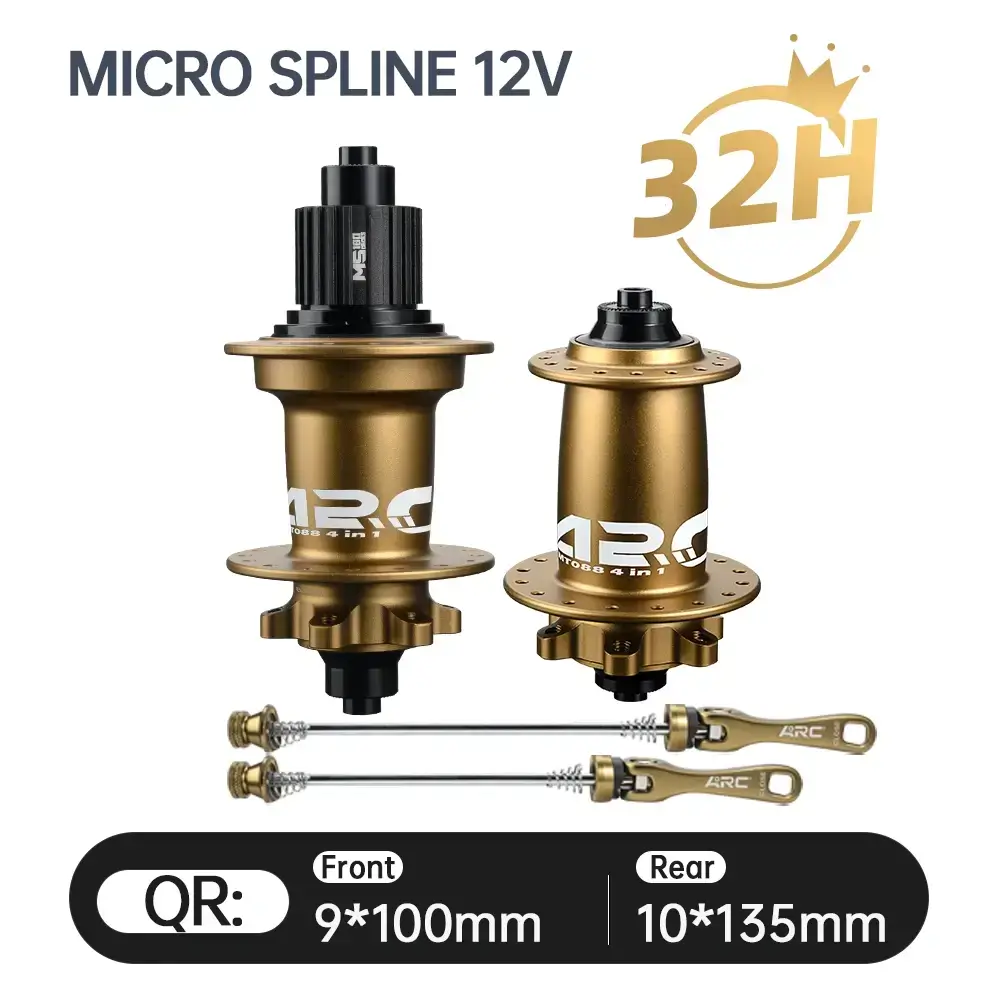

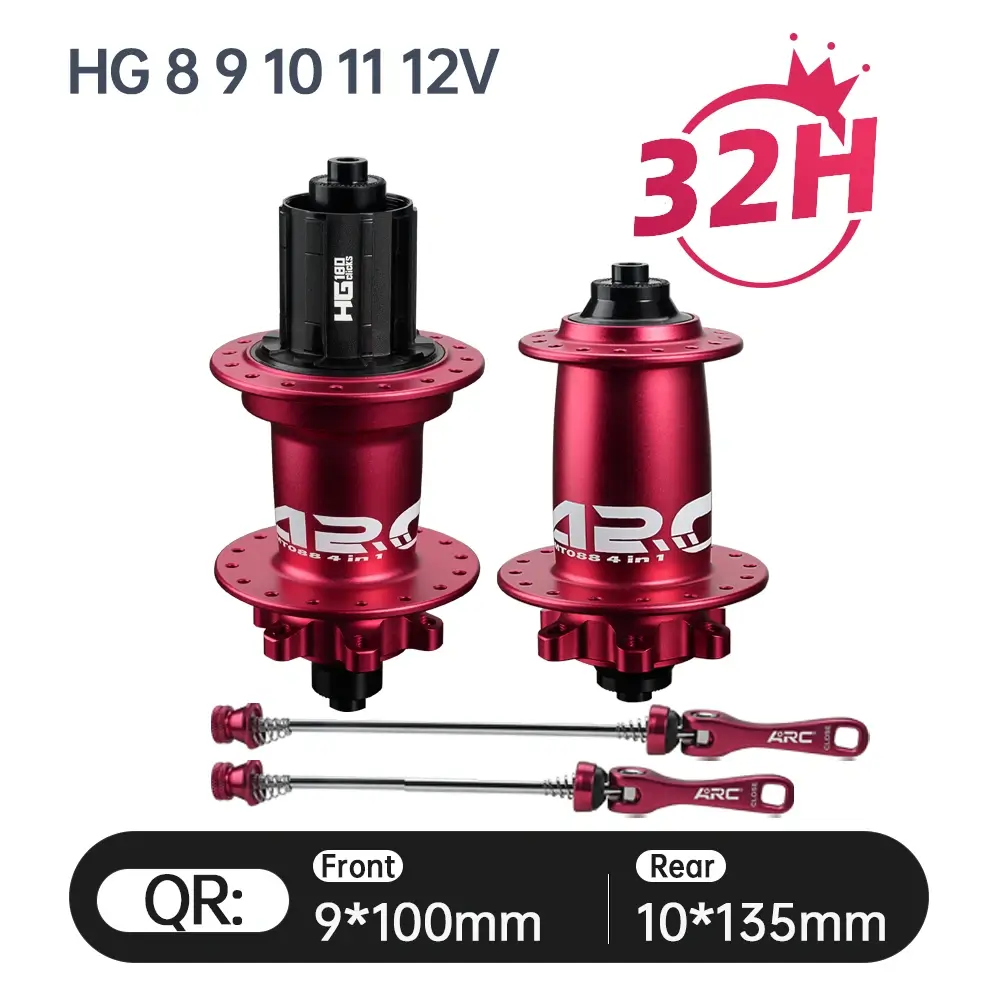

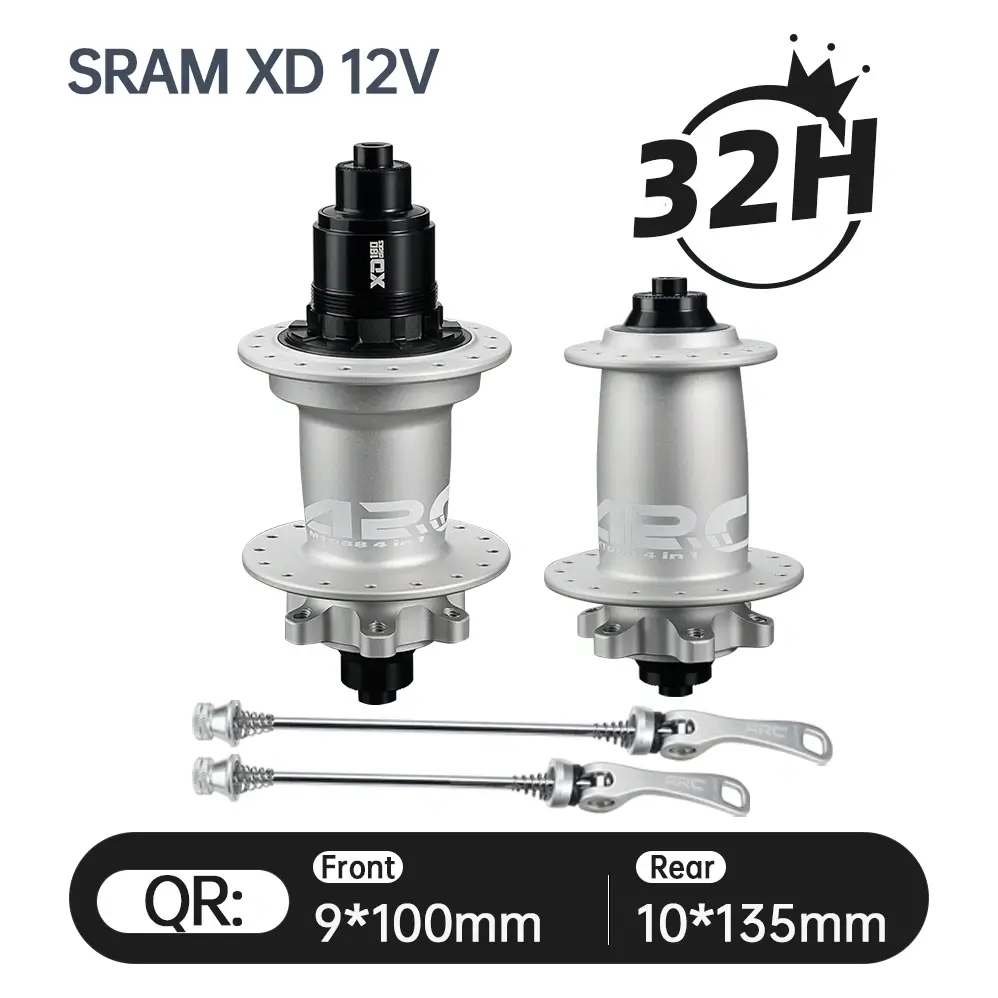

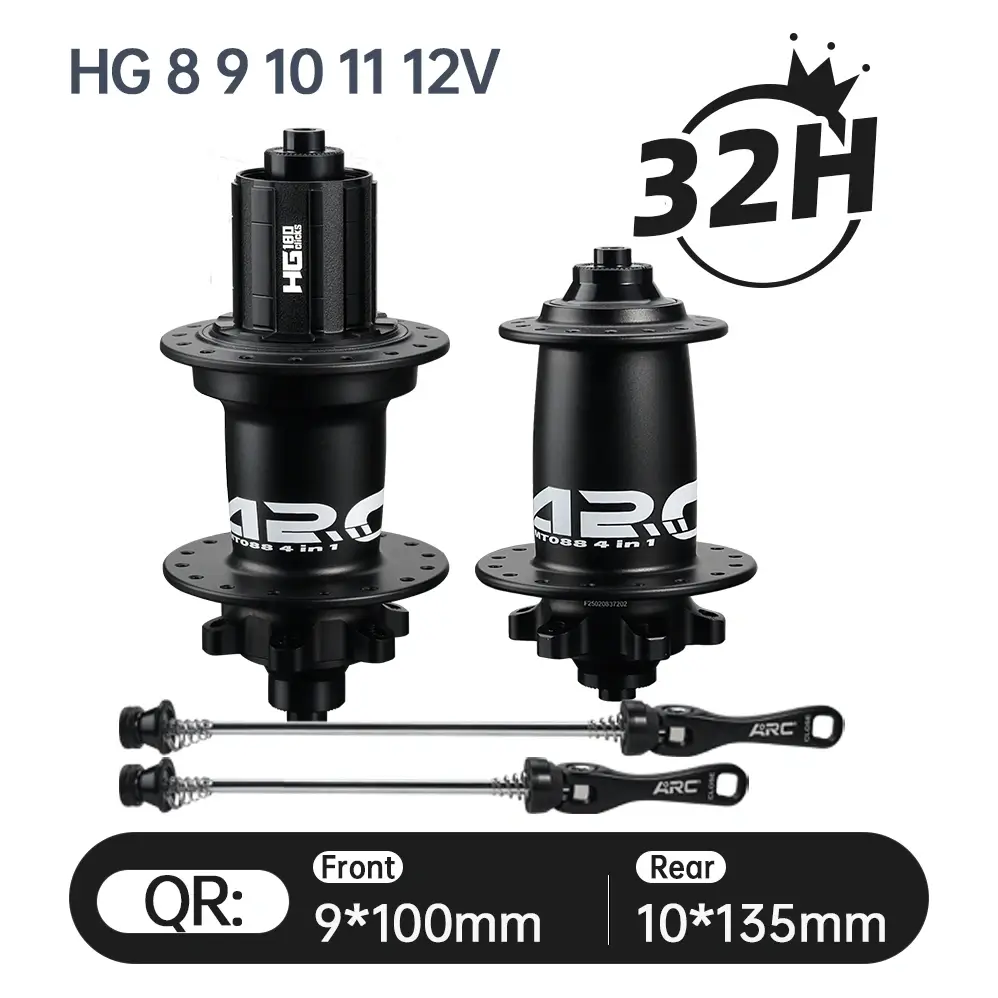

| Front QR Spacing | 9 × 100 mm |
| Rear QR Spacing | 10 × 135 mm |

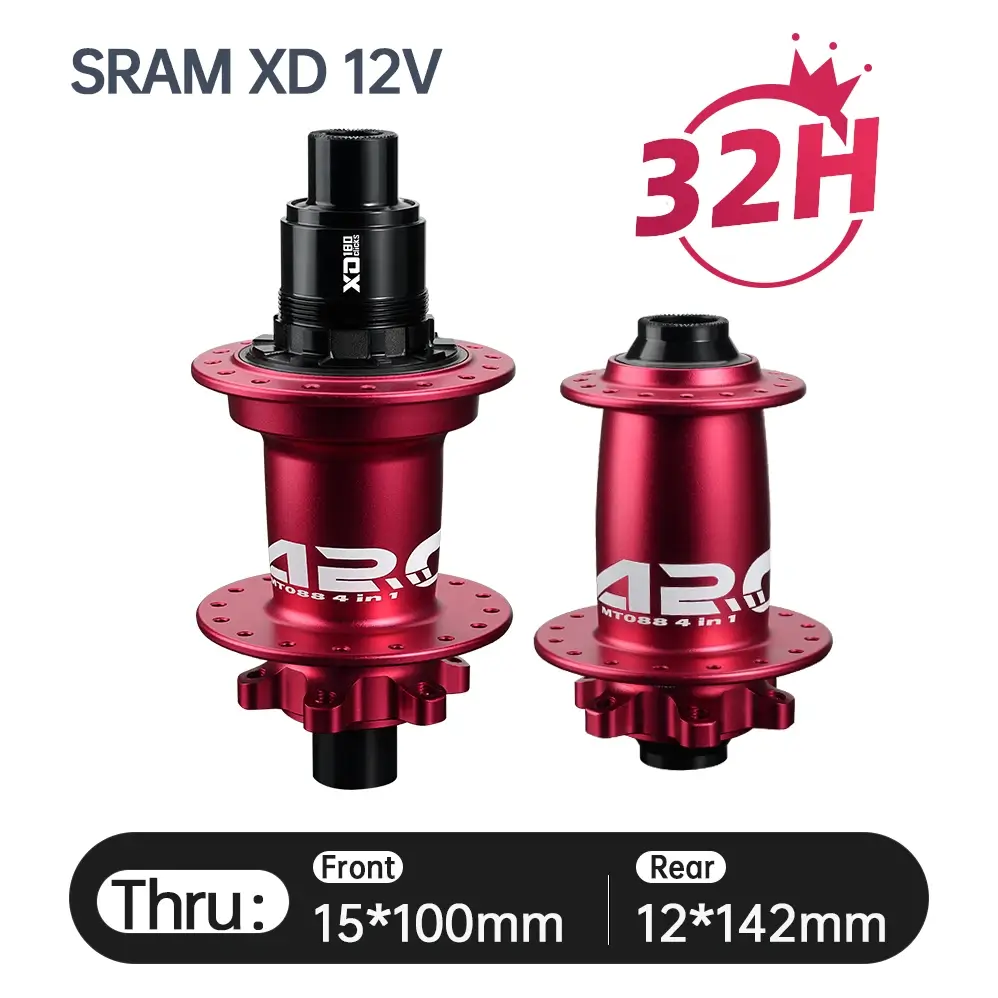

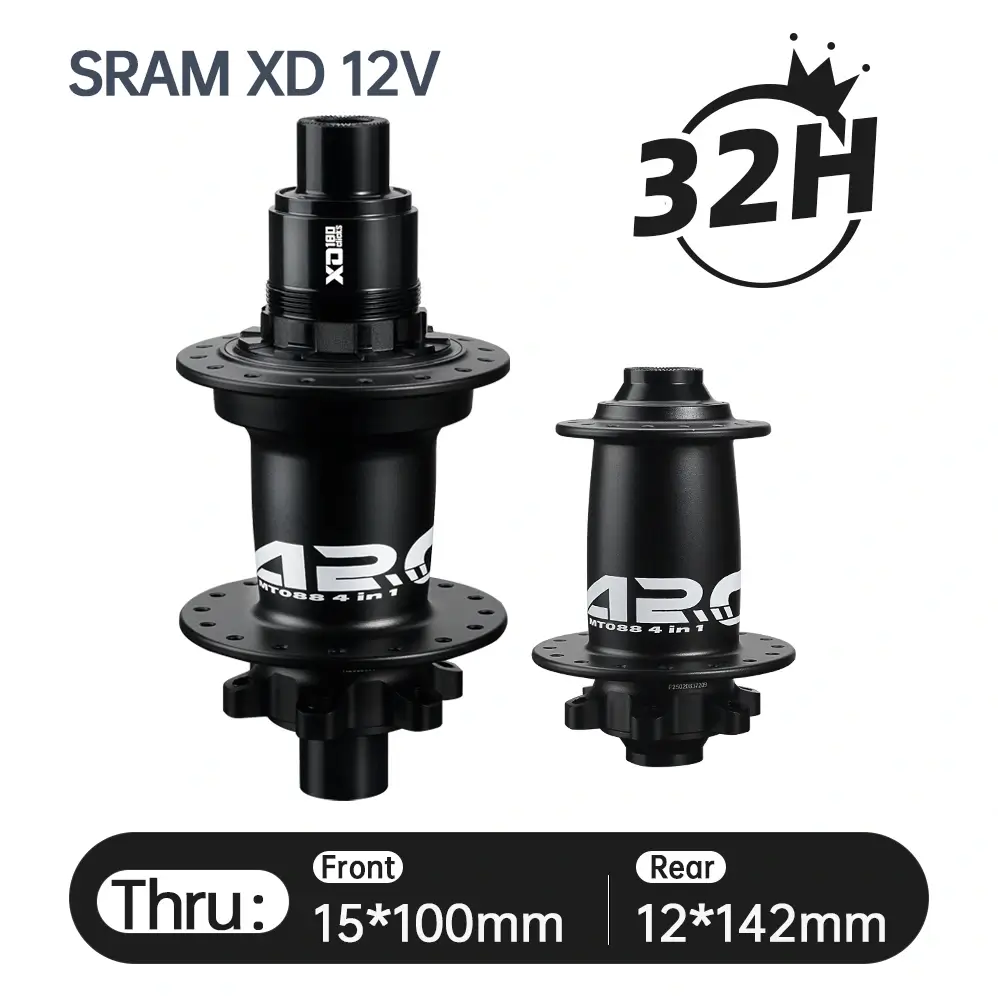

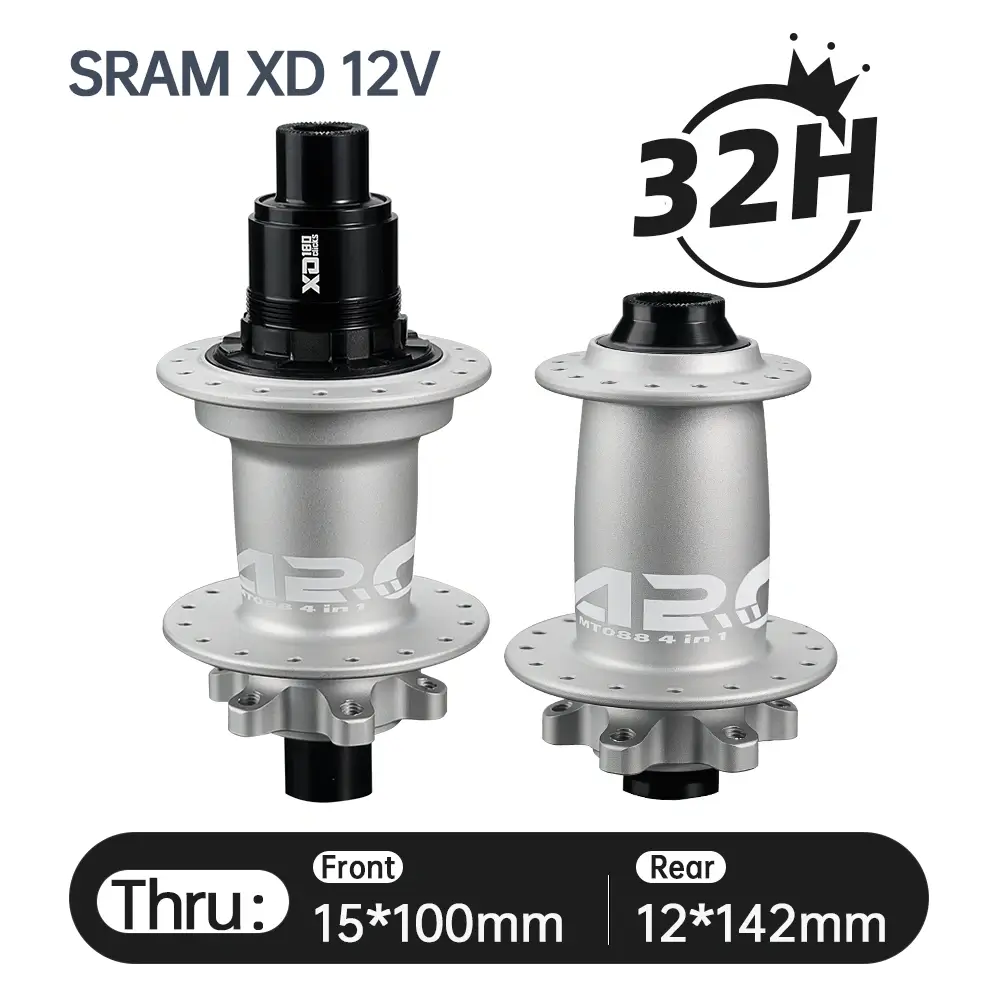

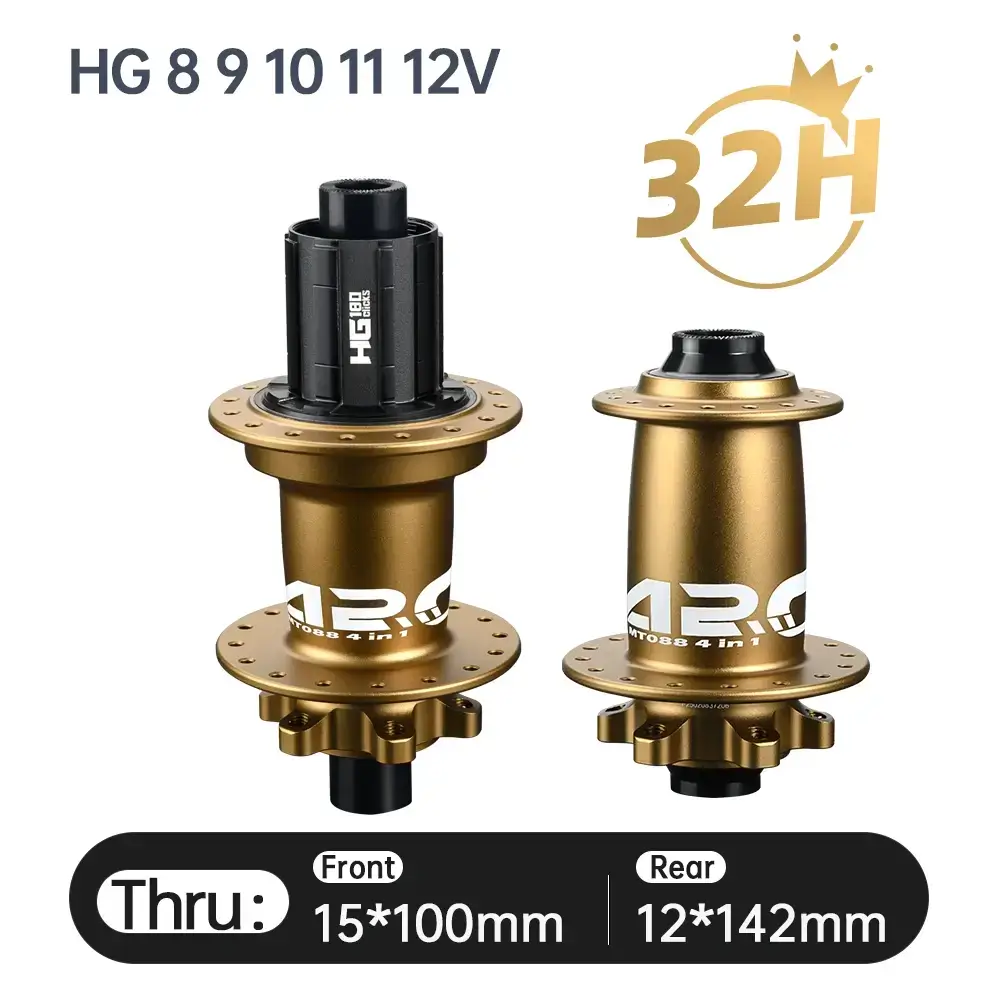

| Front Thru-Axle Spacing | 15 × 100 mm |
| Rear Thru-Axle Spacing | 12 × 142 mm |
| Spoke Type | J-Bend |
| Spoke Holes | Front 32H / Rear 32H |
| Spoke Gauge | 14G |
| Engagement System | 6 Pawls / 2 Teeth |
| Points of Engagement | 180 POE |
| Engagement Angle | 2° |

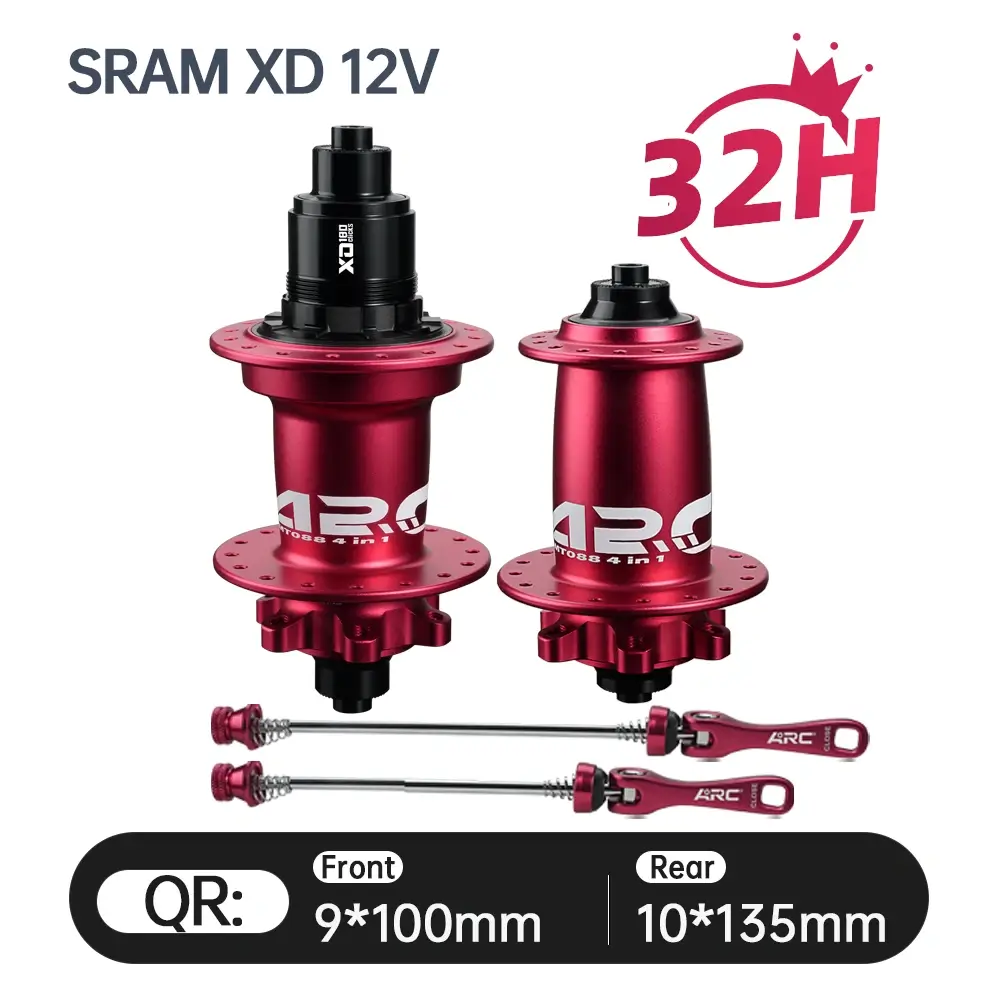

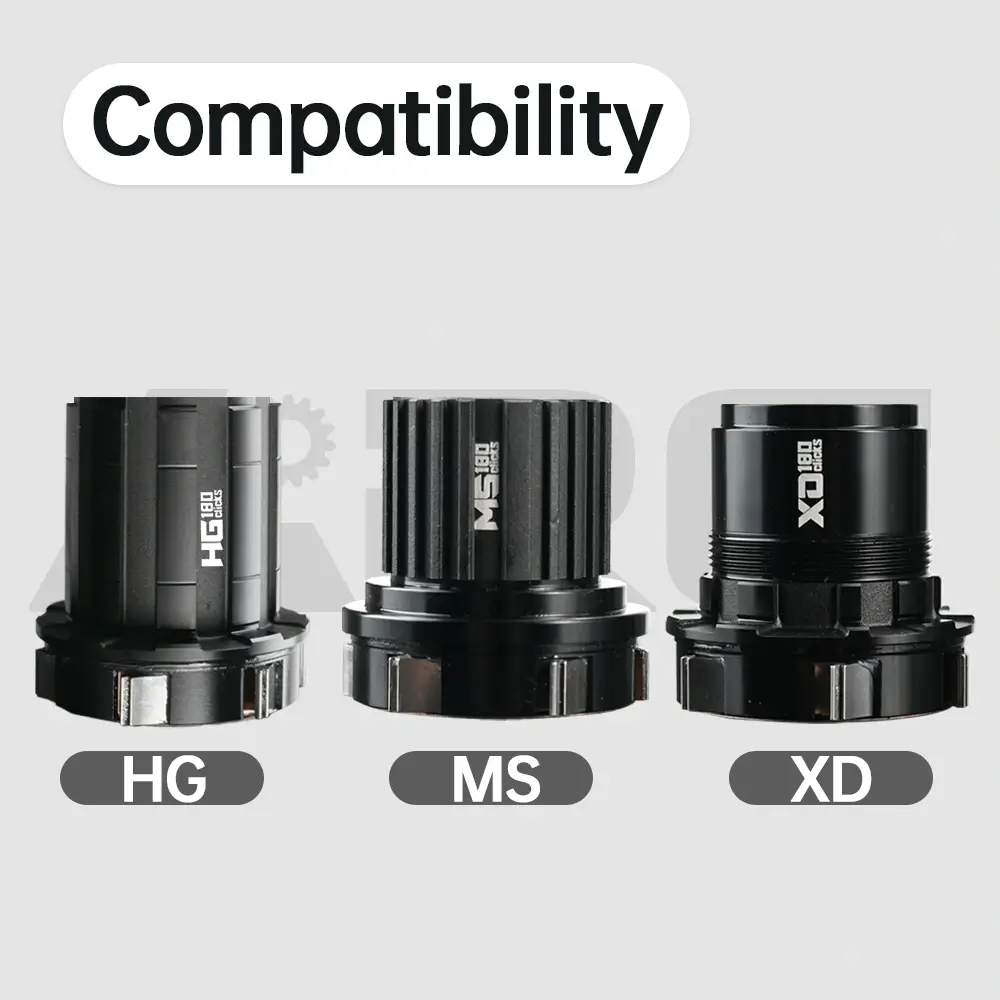

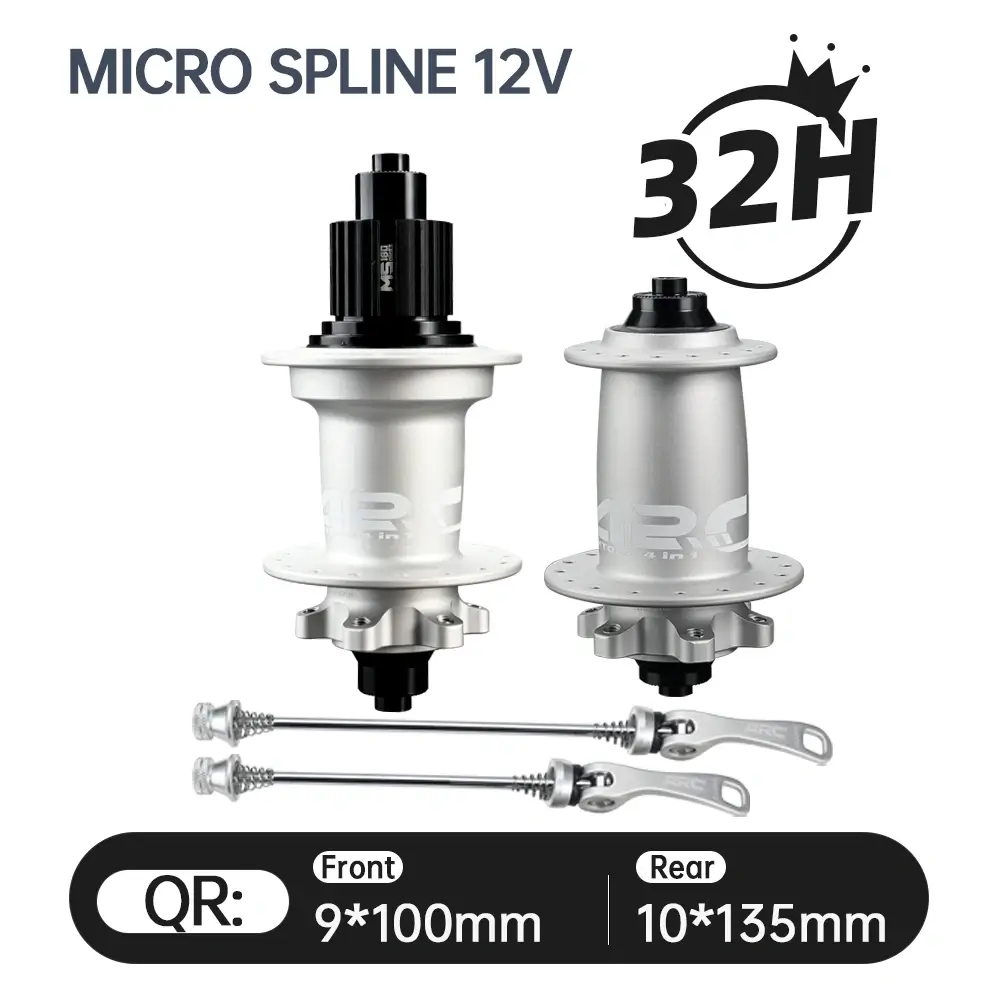

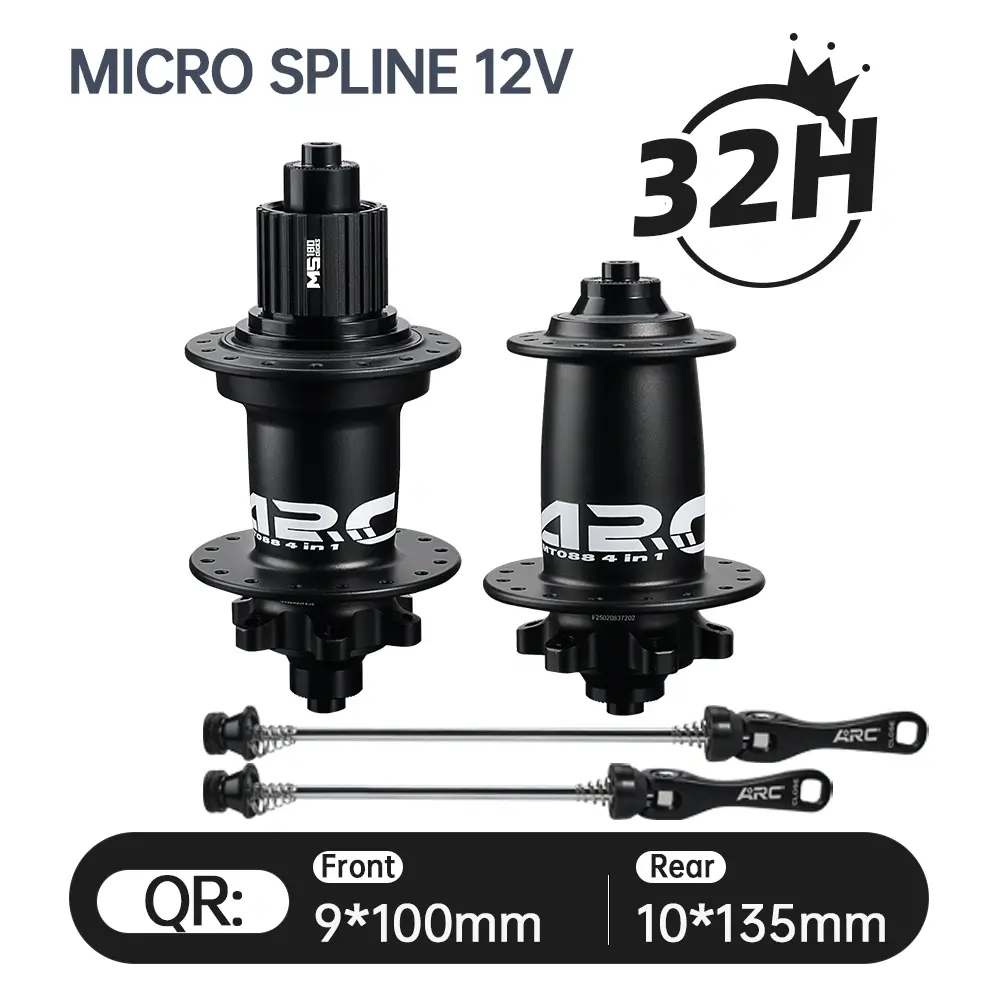

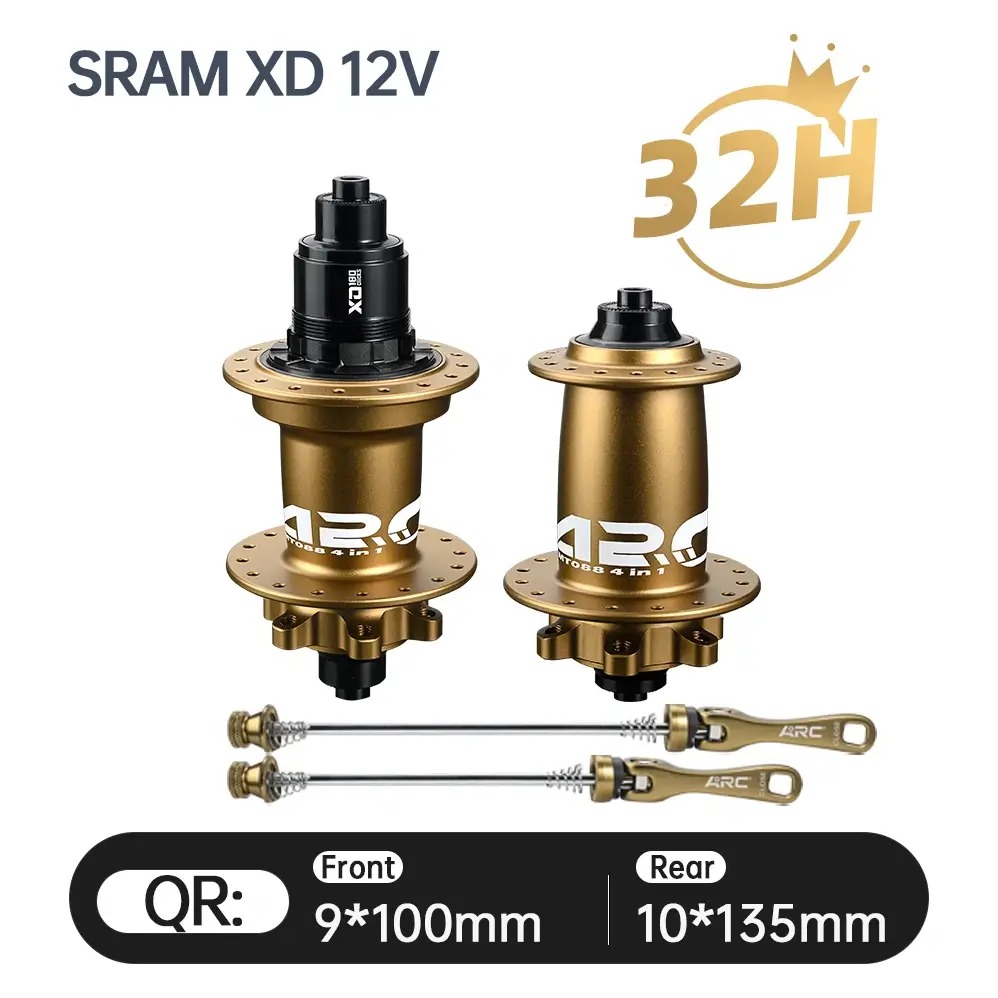

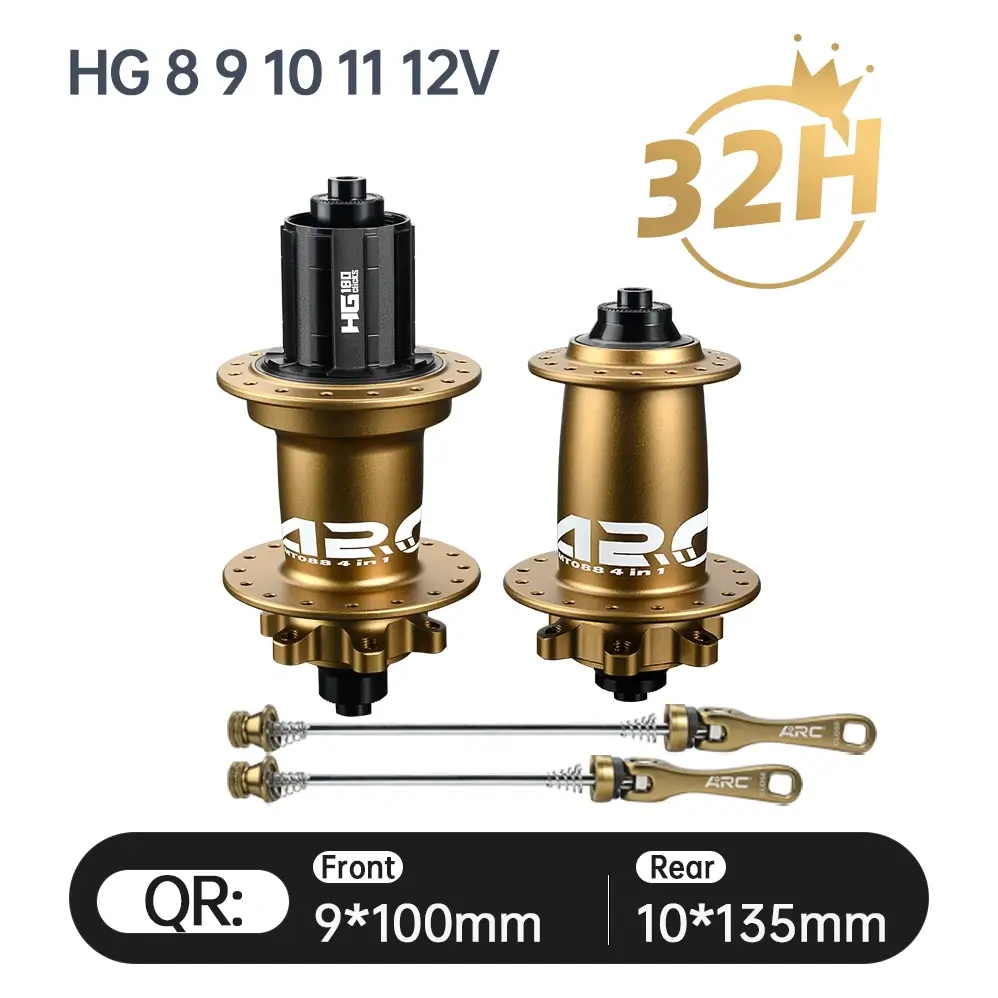

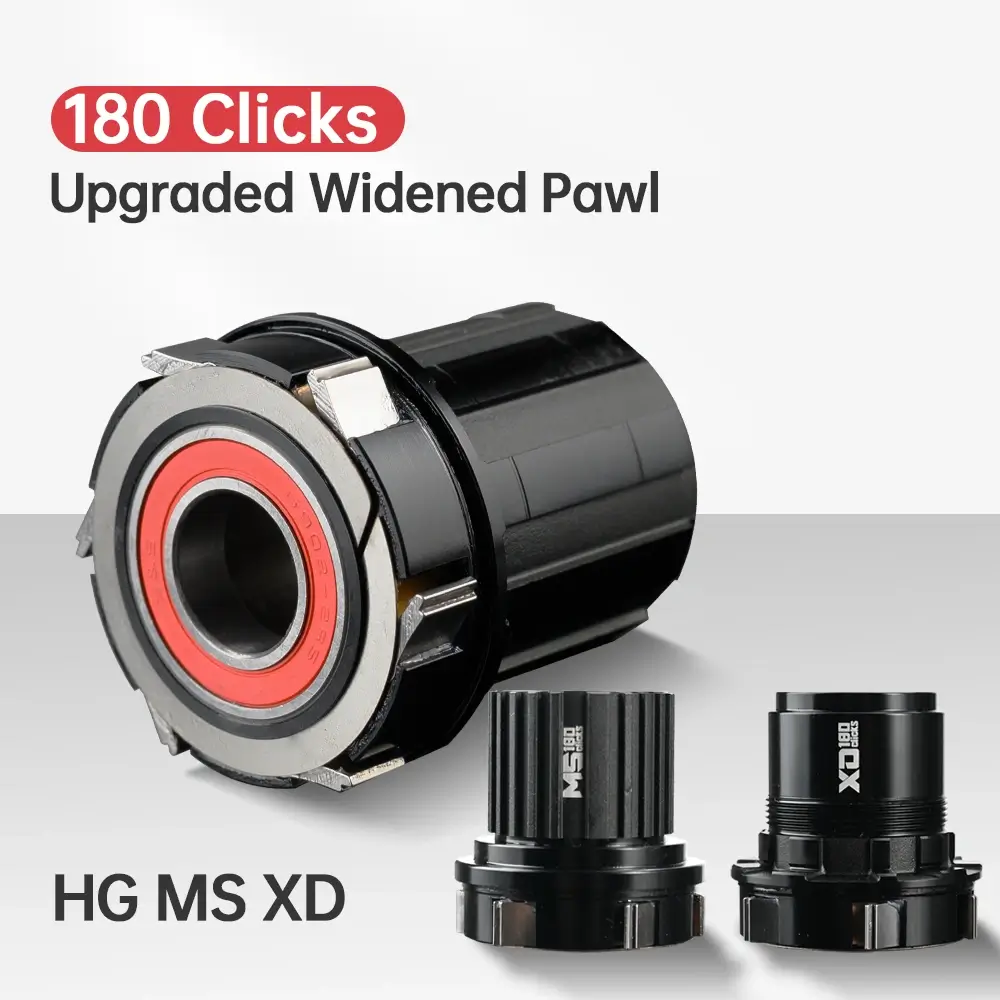

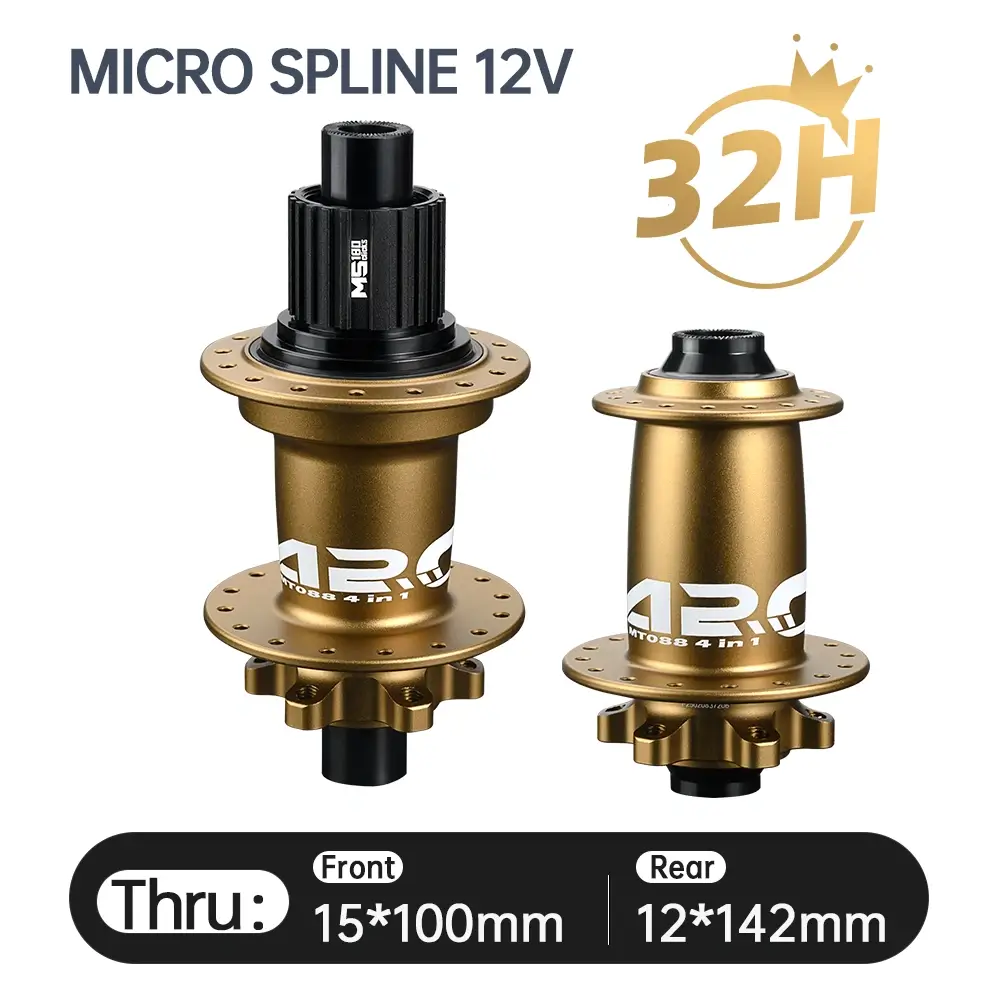

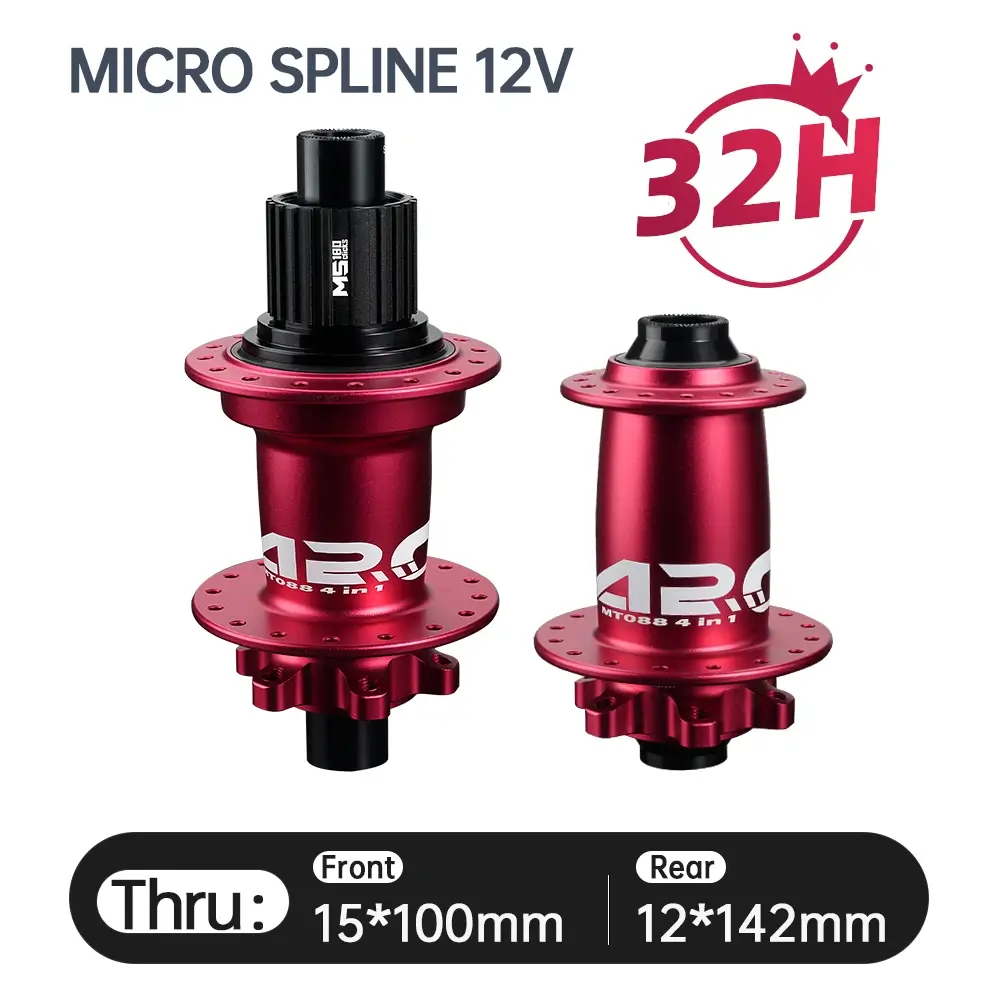

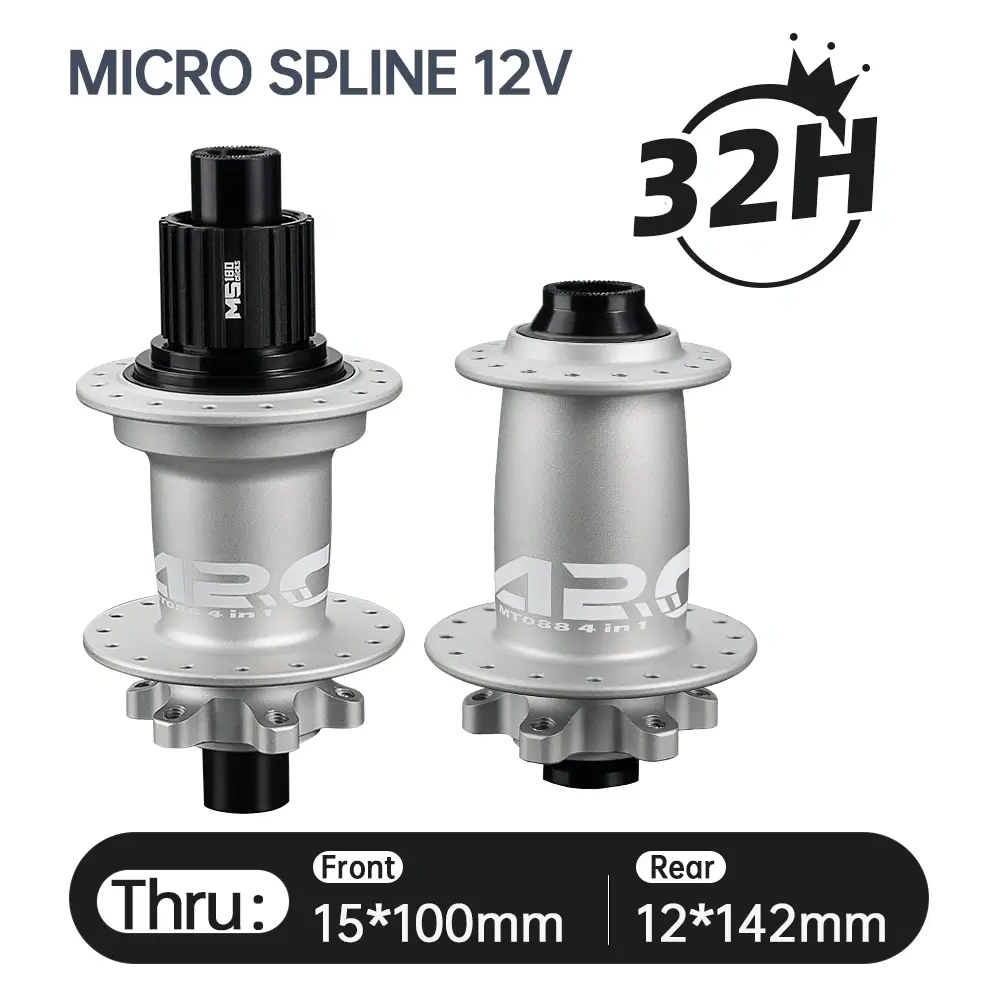

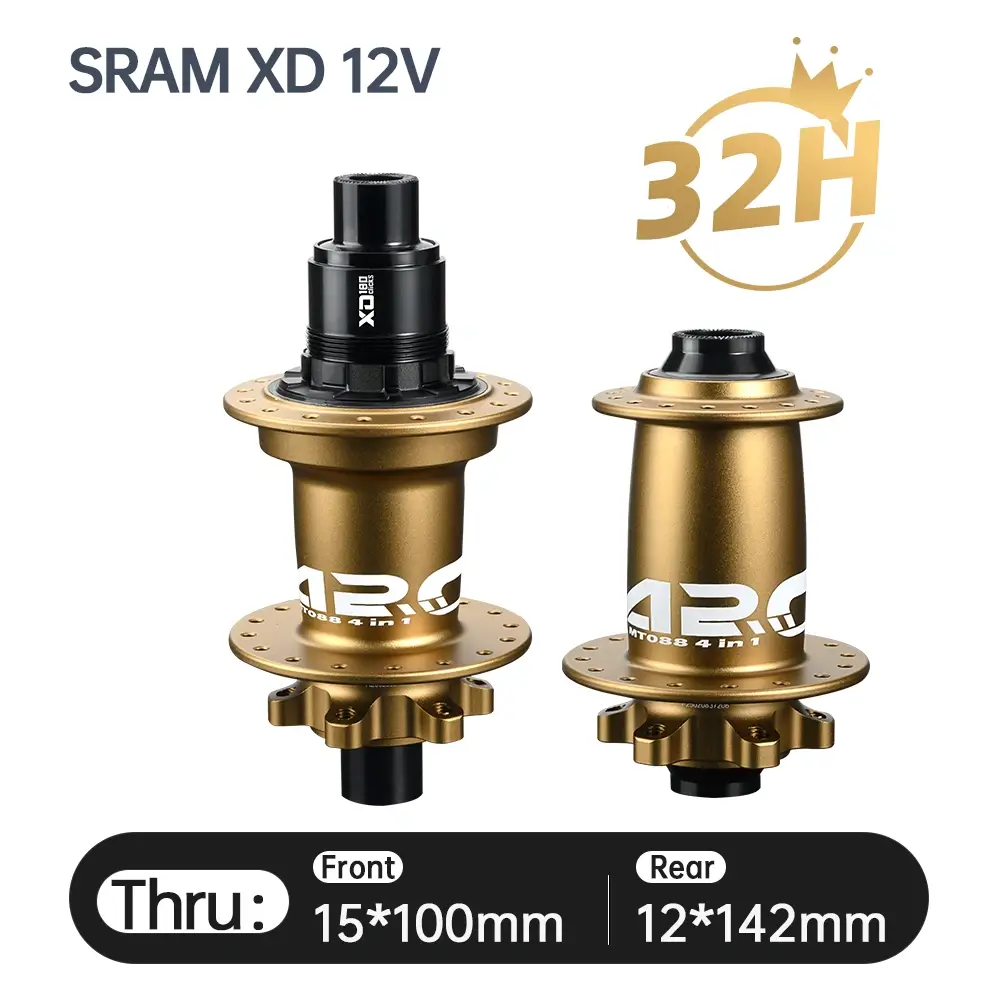

| Freehub Options | Shimano HG / Shimano Micro Spline (MS) / SRAM XD |
| Bearing Type | Sealed Bearings |
| Front Bearings | 2 Sealed Bearings |
| Rear Bearings | 4 Sealed Bearings |

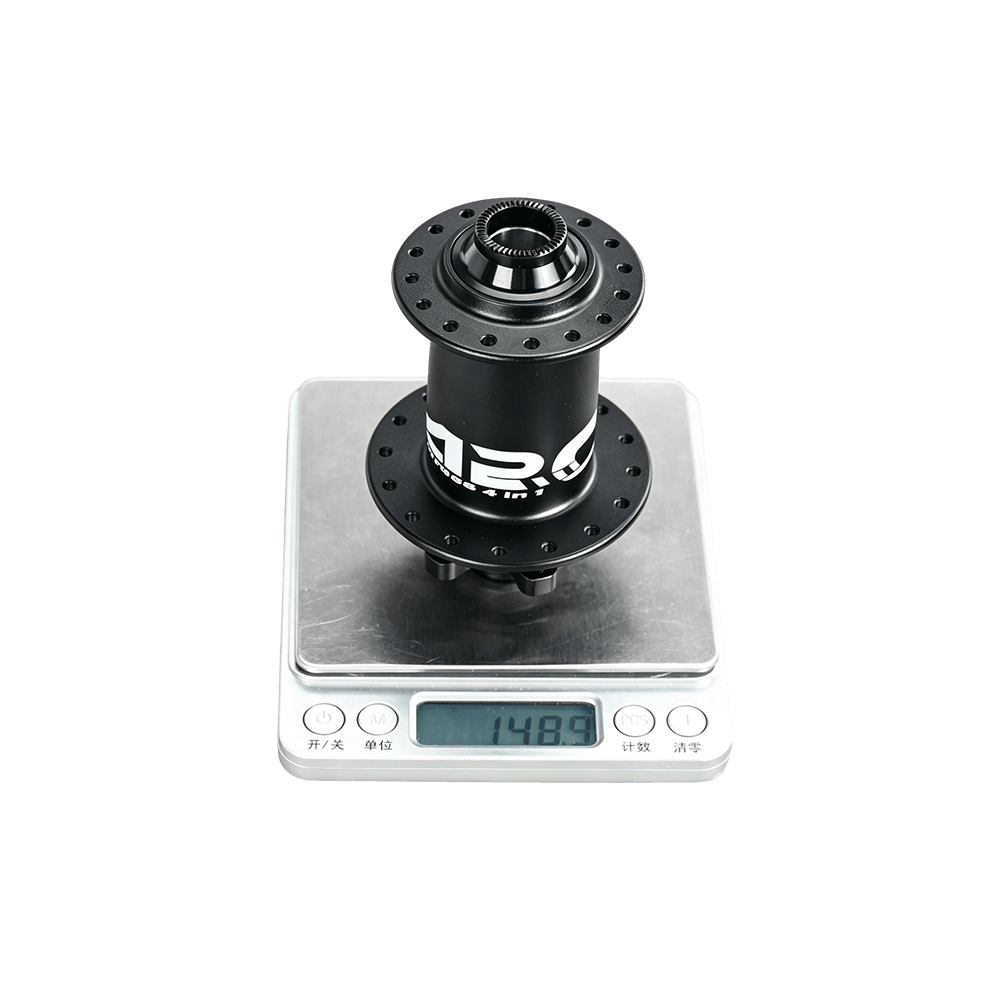

| Front Hub Weight | 148.9 g |

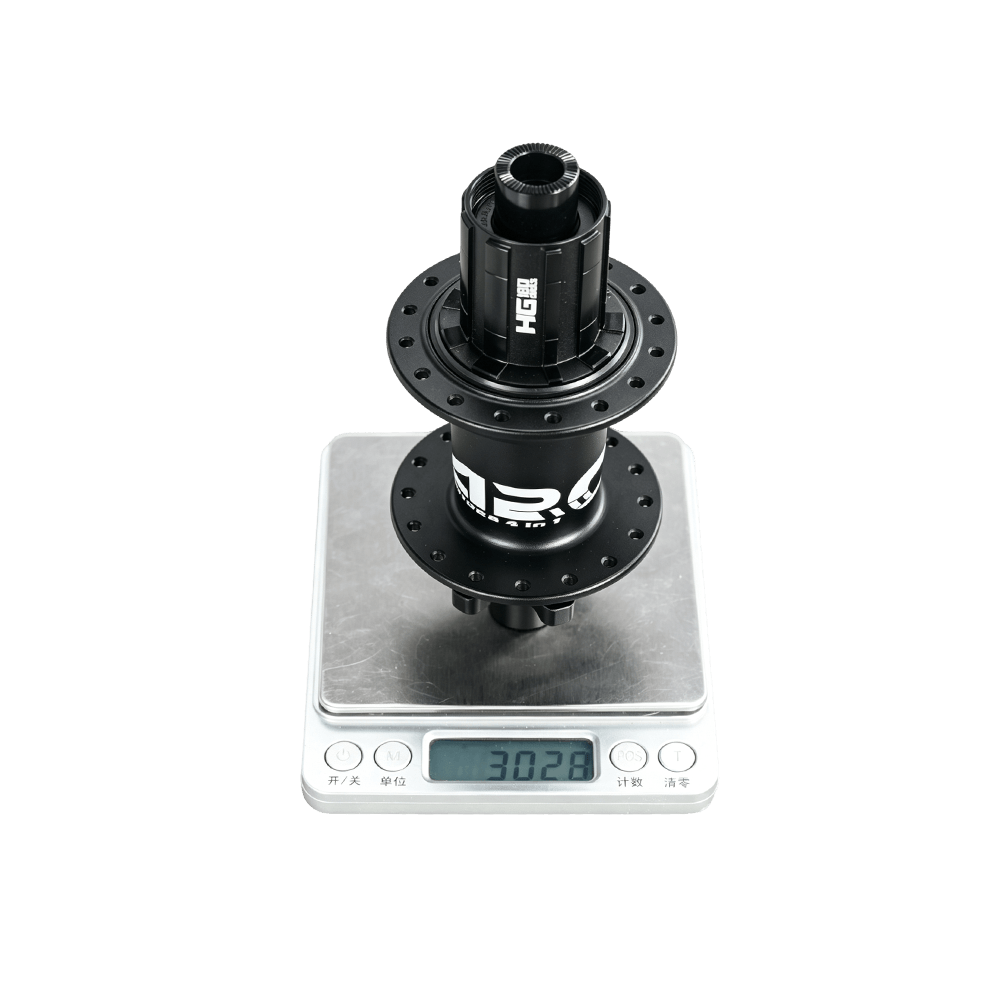

| Rear Hub Weight | 302.8 g |
| Total Set Weight | 451.7 g |

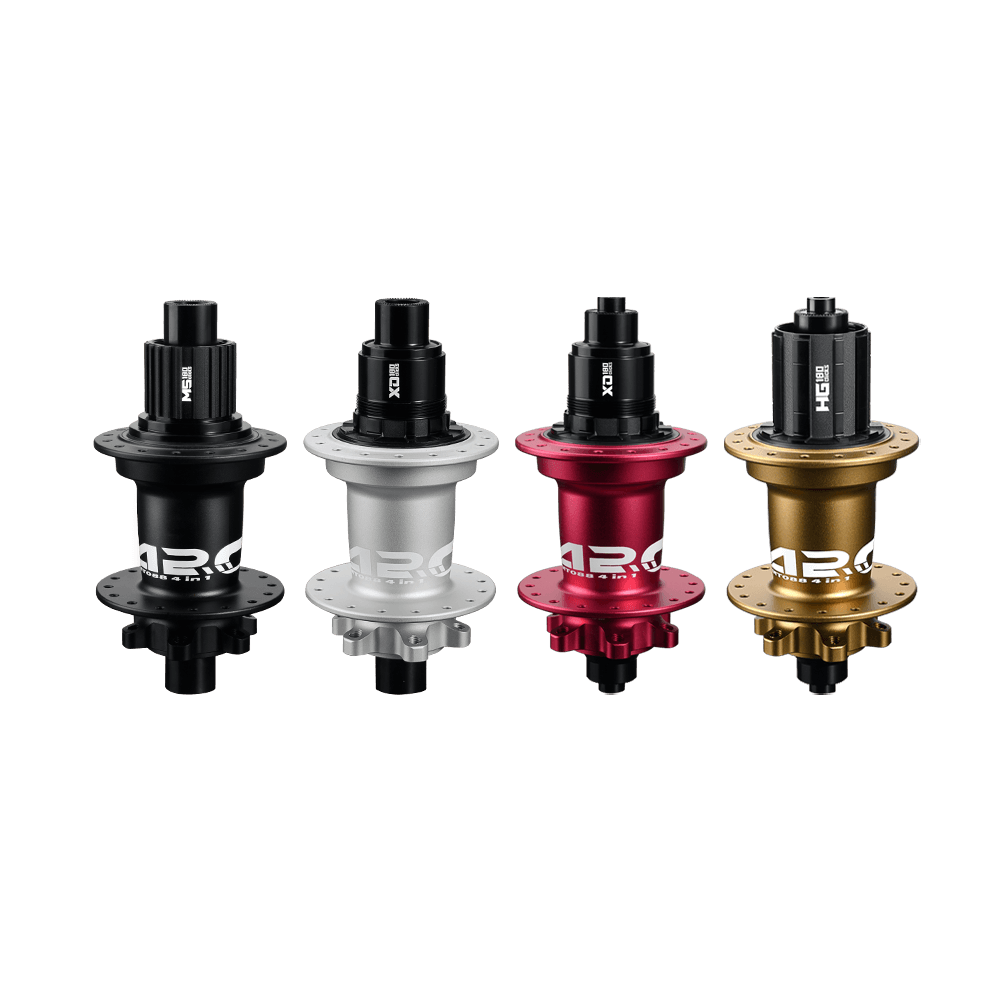

| Color | Customizable |
| Country of Origin | Jiangsu, China |
| Set Package Type | 1 Set (Front + Rear) |
| Package Dimensions (Per Set) | Approx. 22 × 17 × 9 cm |
| Package Gross Weight (Per Set) | Approx. 0.8 kg |
| Single Hub Package Type | 1 Hub (Front or Rear) |
| Single Hub Package Dimensions | Approx. 22 × 9 × 9 cm |
| Single Hub Package Gross Weight | Approx. 0.6 kg |
