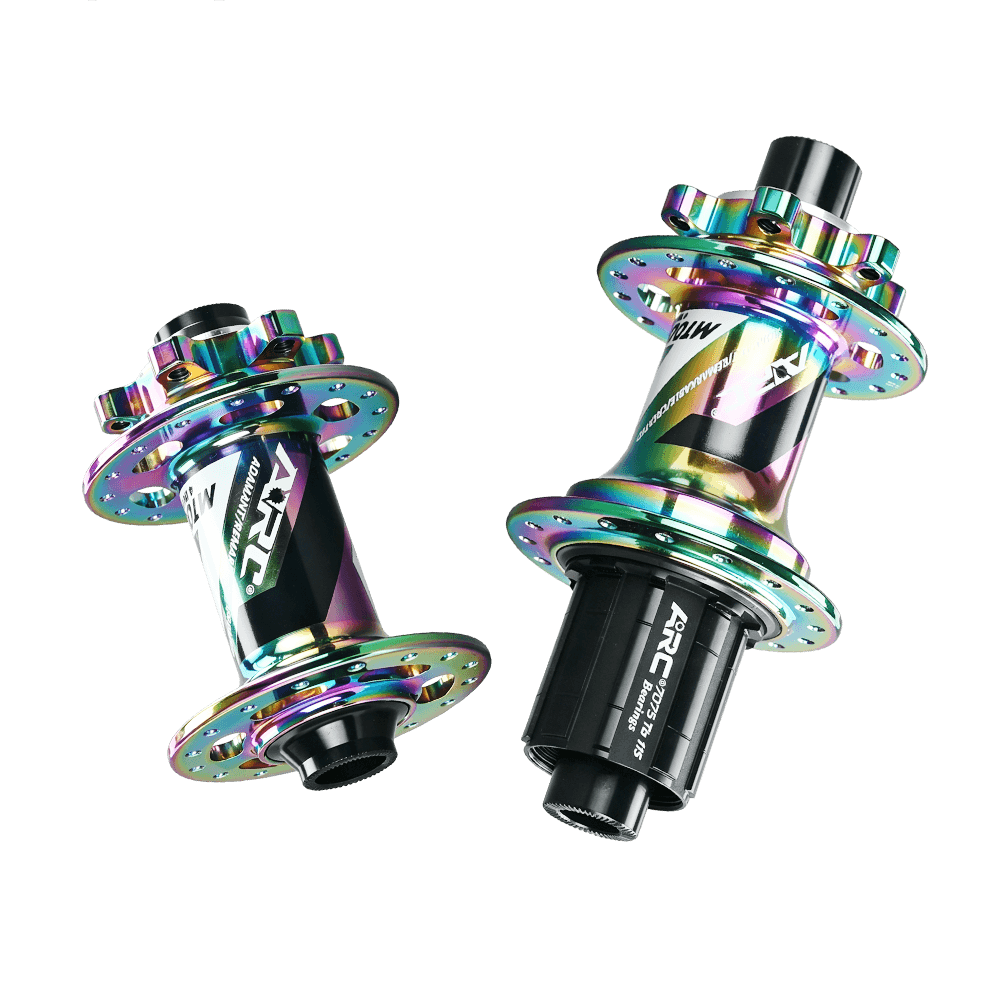

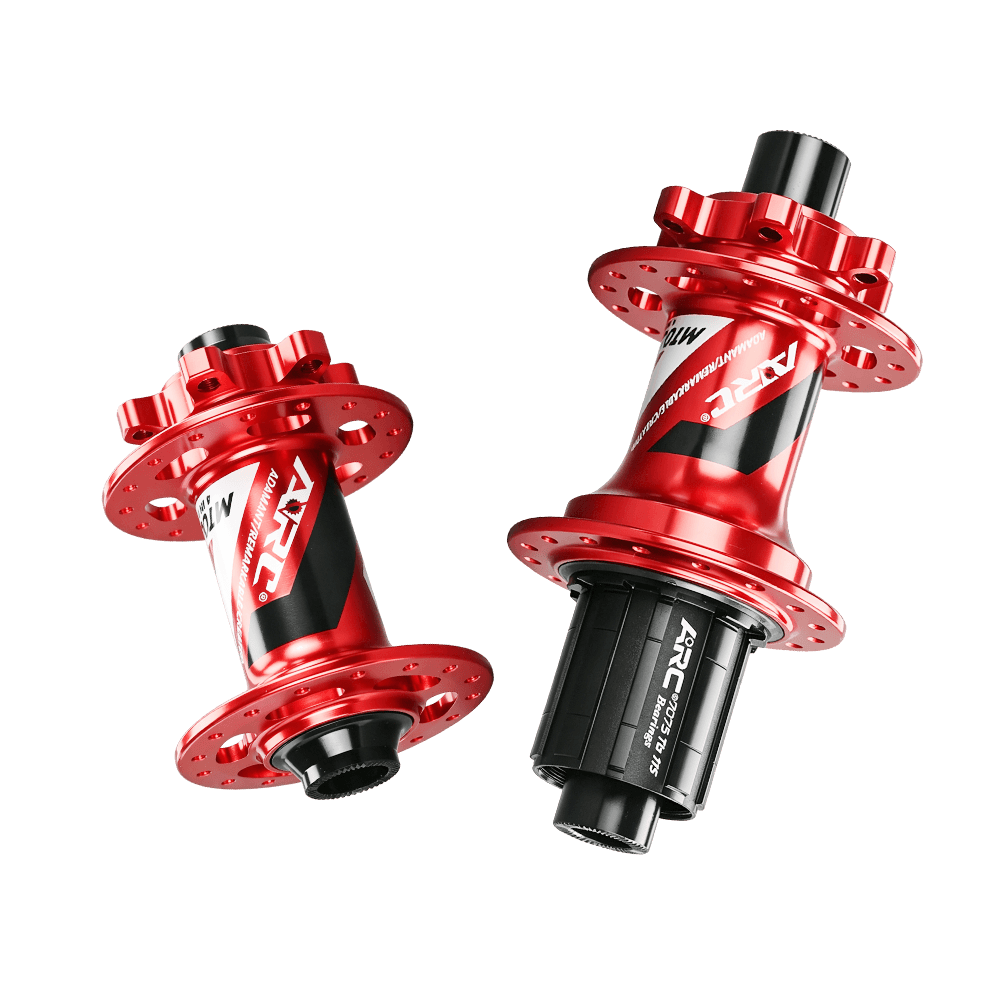

| Specification | Details |
|---|---|
| Brand | ARC |
| Model | MT-009F/R |
| Product Type | MTB Disc Brake Hub Set |
| Application | Mountain Bike / MTB |
| Hub Position | Front and Rear |
| Hub Shell Material | AL6061-T6 Aluminum Alloy |

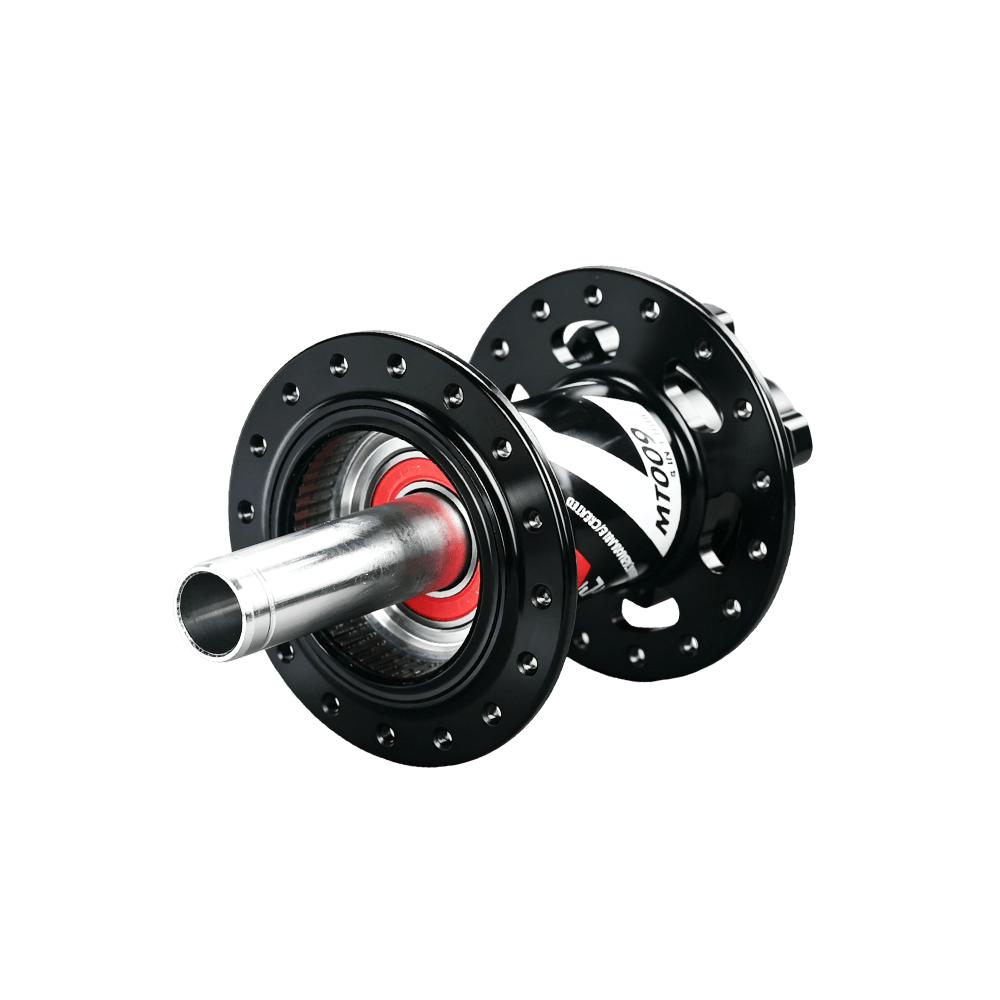

| Axle Material | AL7075 Aluminum Alloy |
| Surface Finish | Anodized |
| Brake Type | Disc Brake |
| Rotor Mount | Center Lock |
| Hub Spacing Standard | Non-Boost |

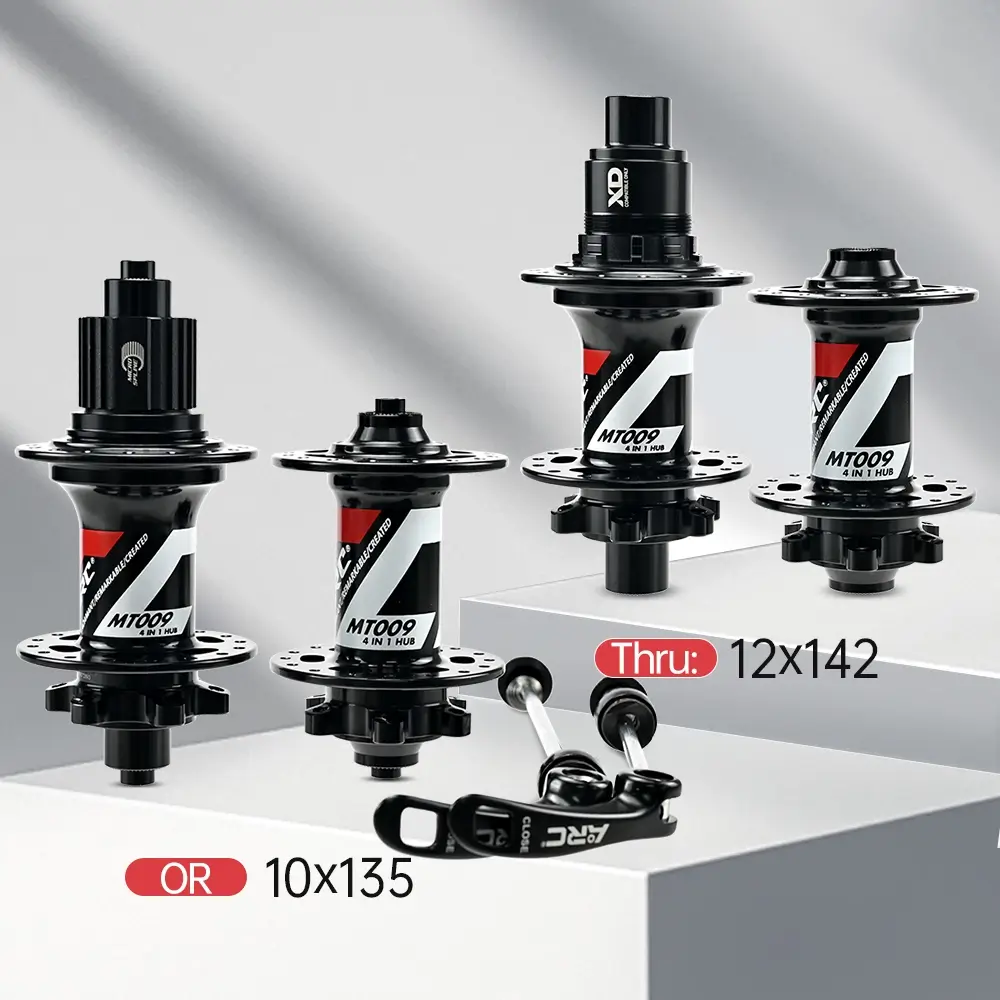

| Axle Options | Quick Release (QR) / Thru-Axle |

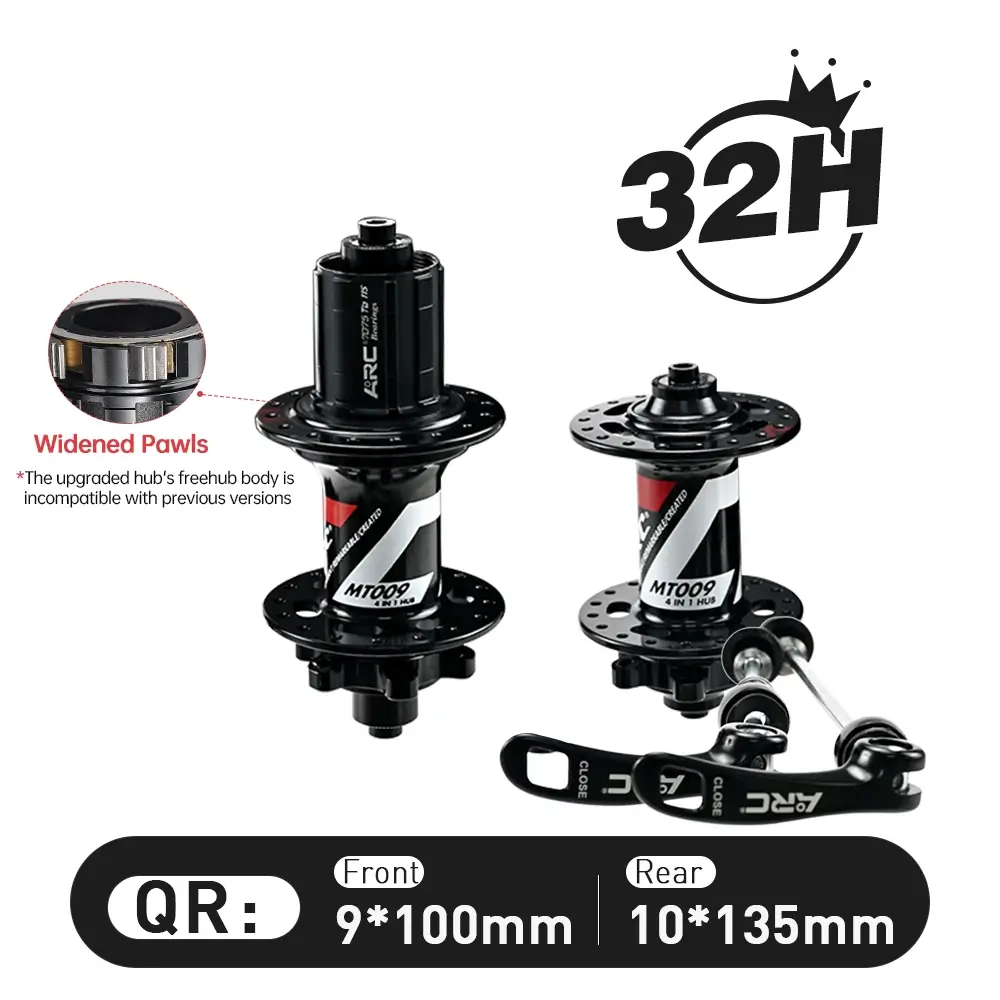

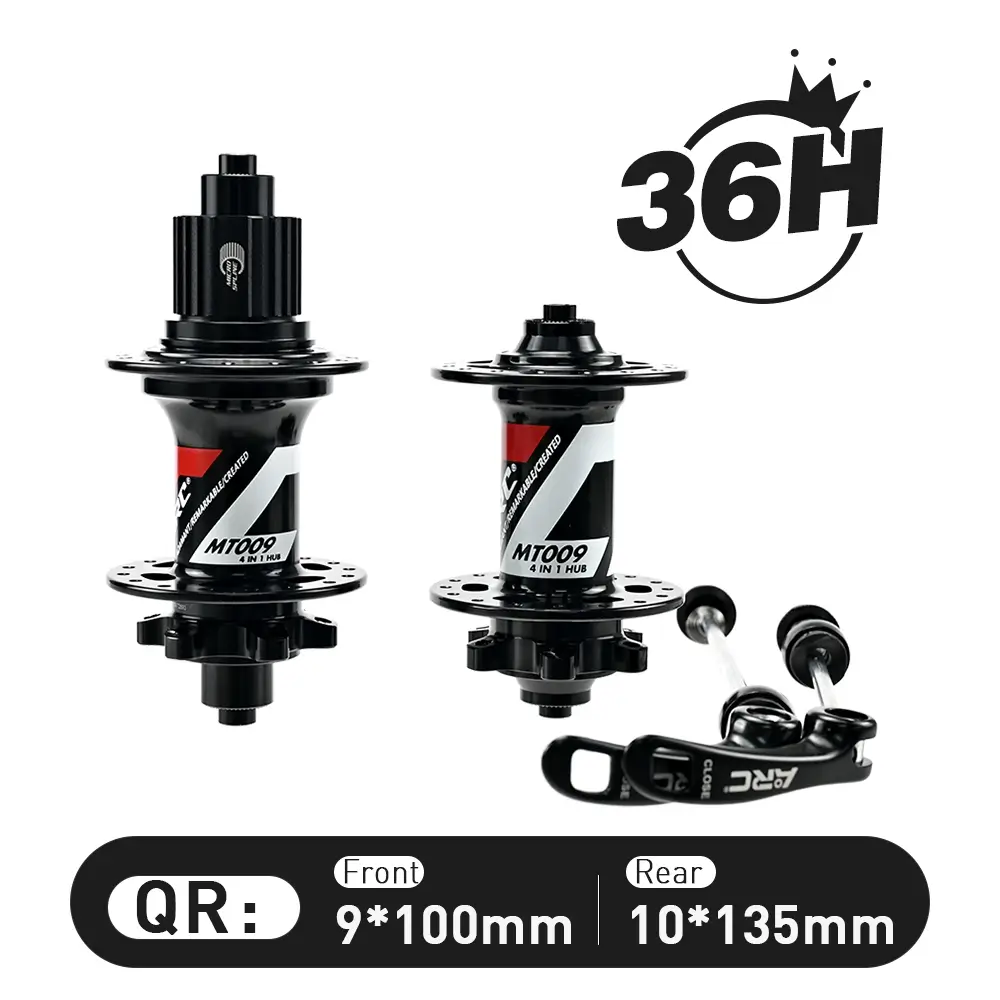

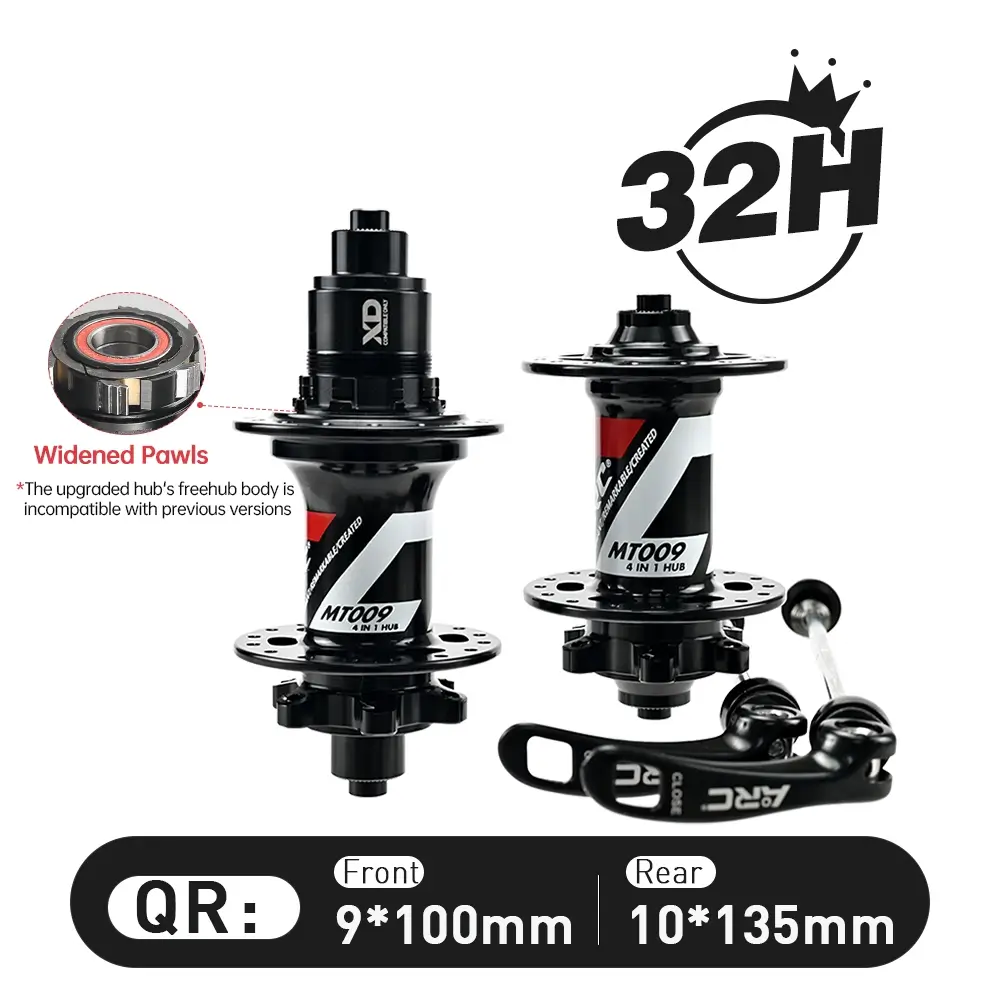

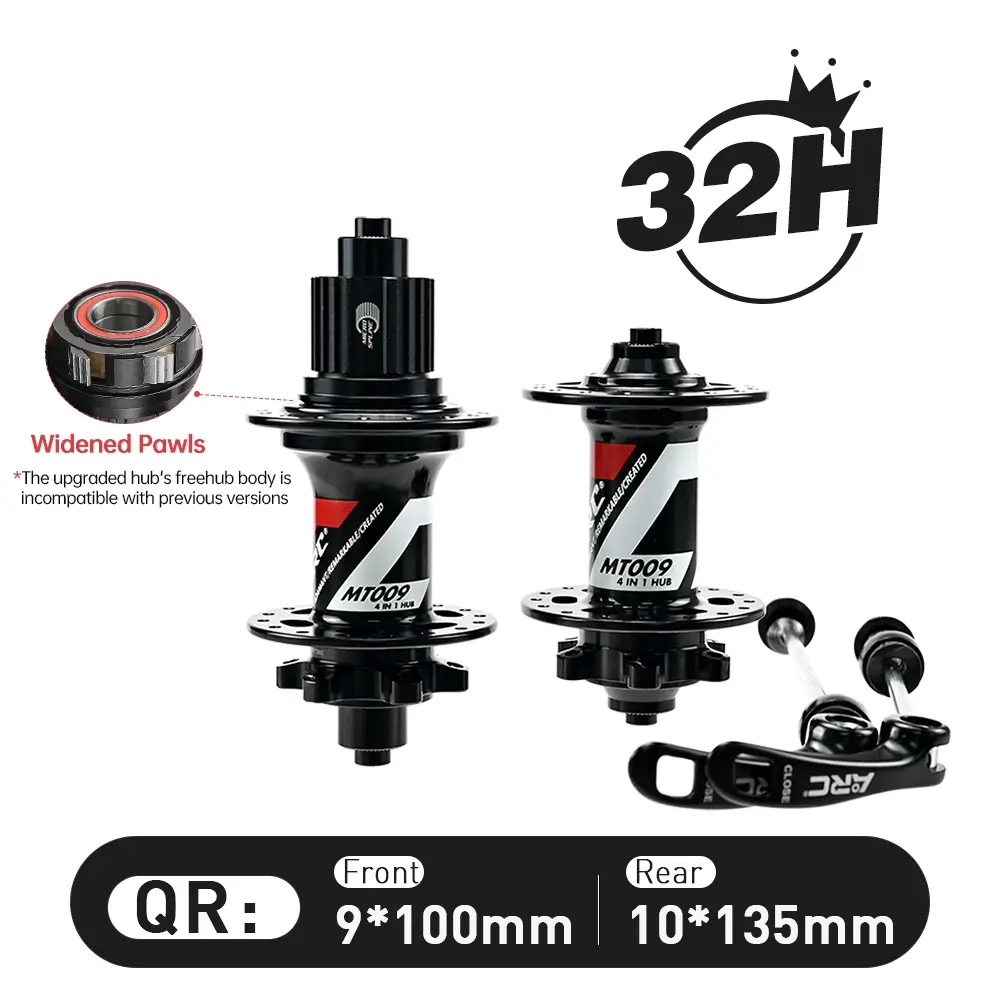

| Front QR Spacing | 9 × 100 mm |
| Rear QR Spacing | 10 × 135 mm |

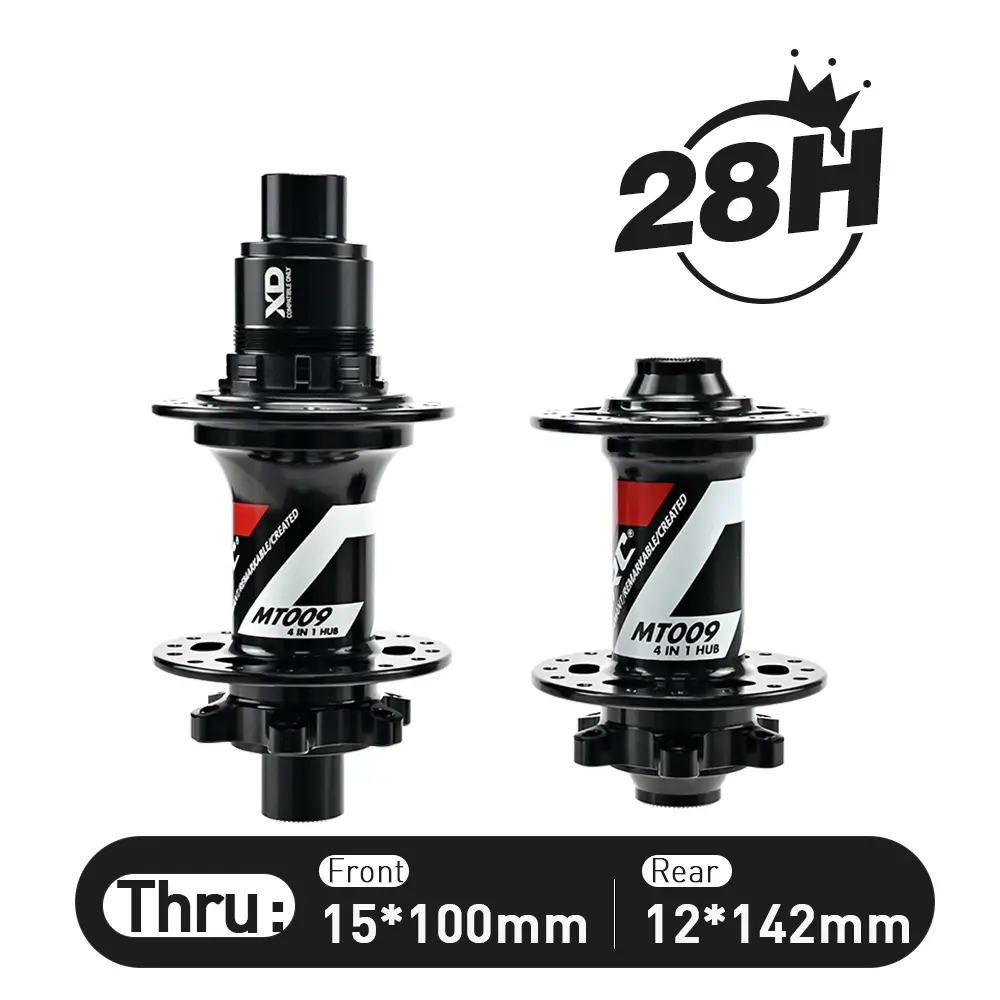

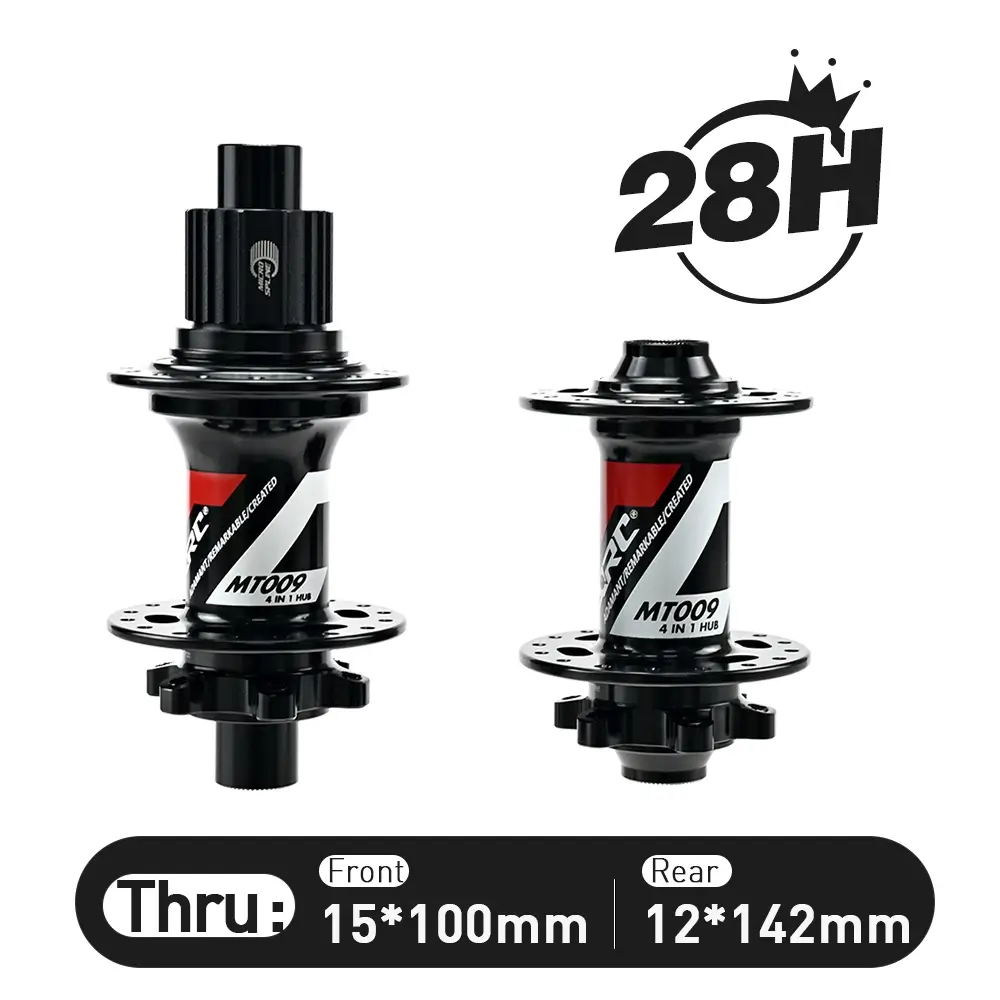

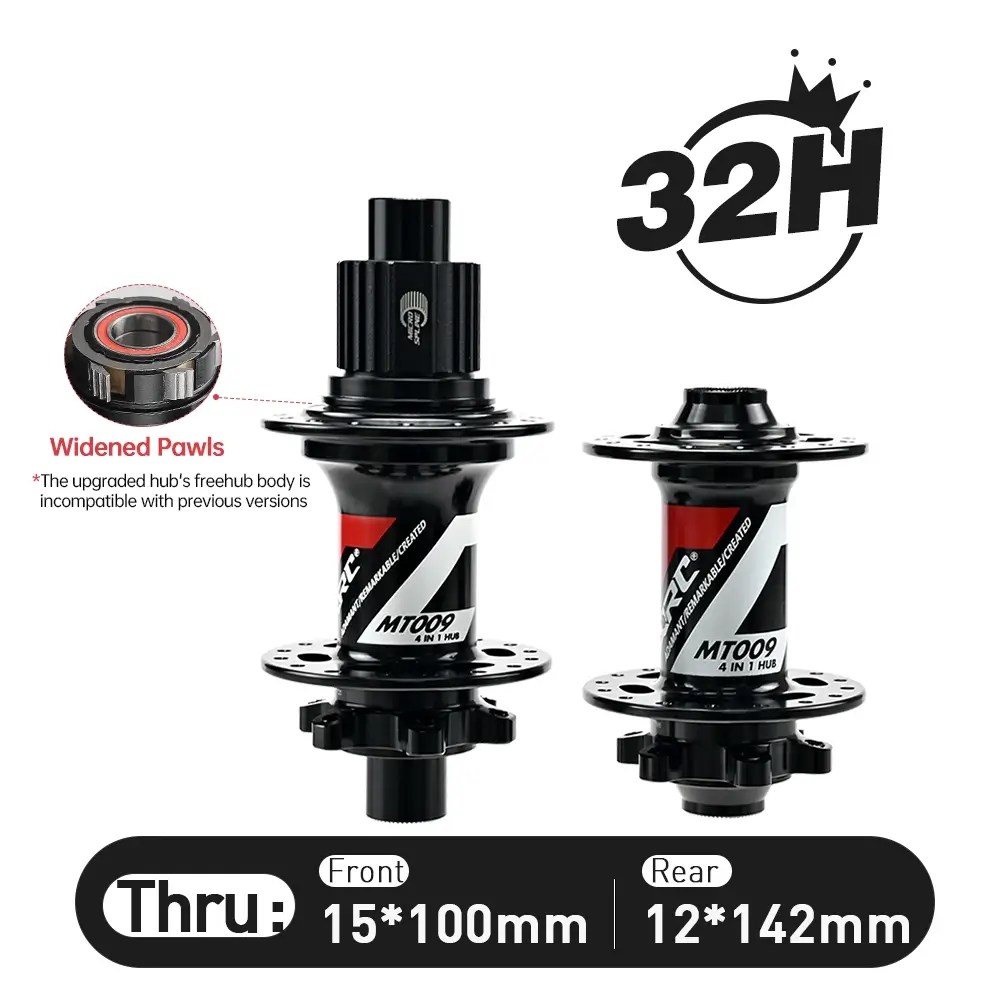

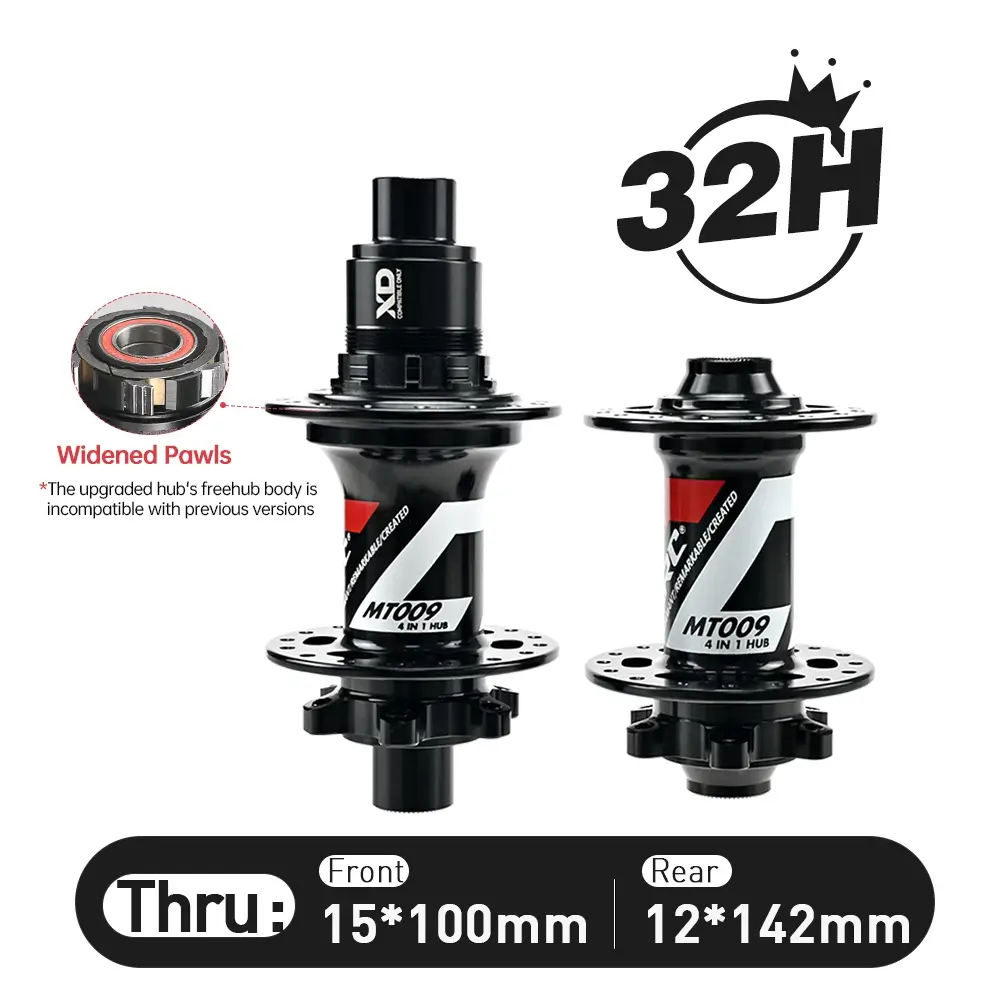

| Front Thru-Axle Spacing | 15 × 100 mm |
| Rear Thru-Axle Spacing | 12 × 142 mm |

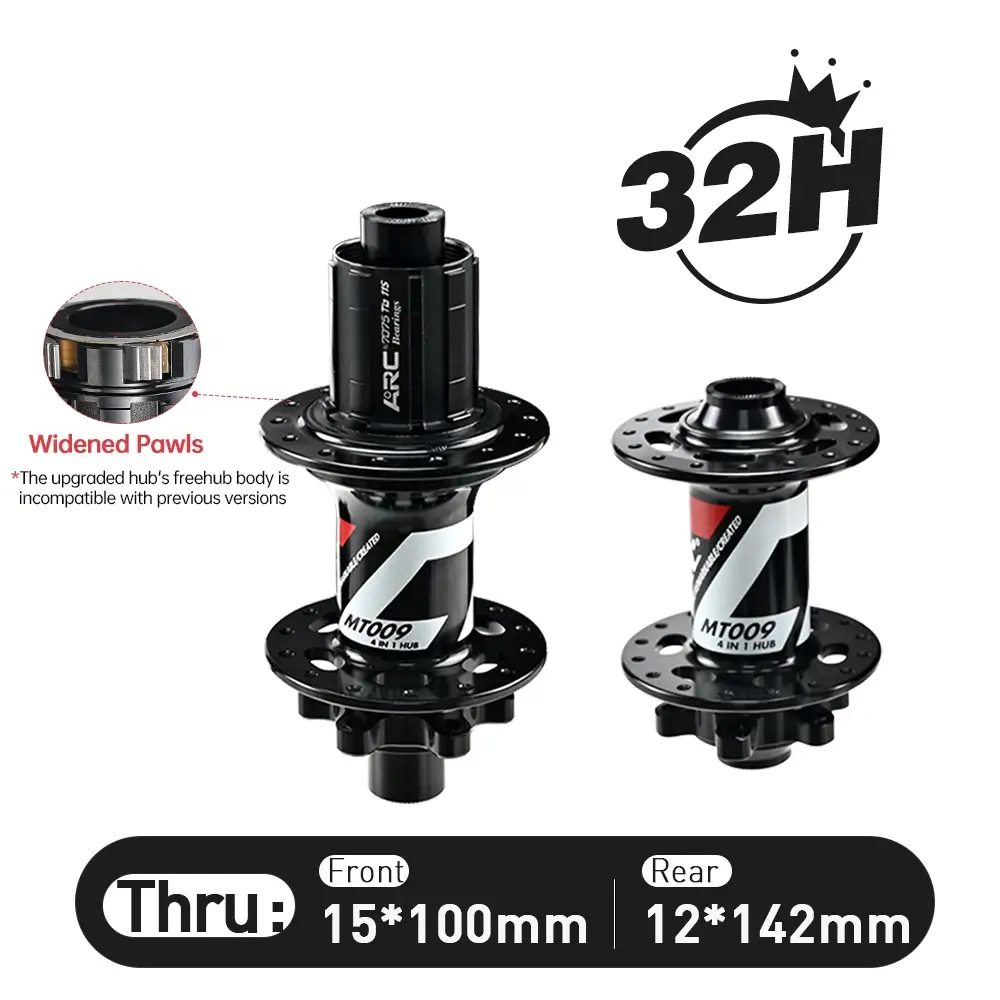

| Spoke Holes | Front 32H / Rear 32H |
| Spoke Gauge | 14G |

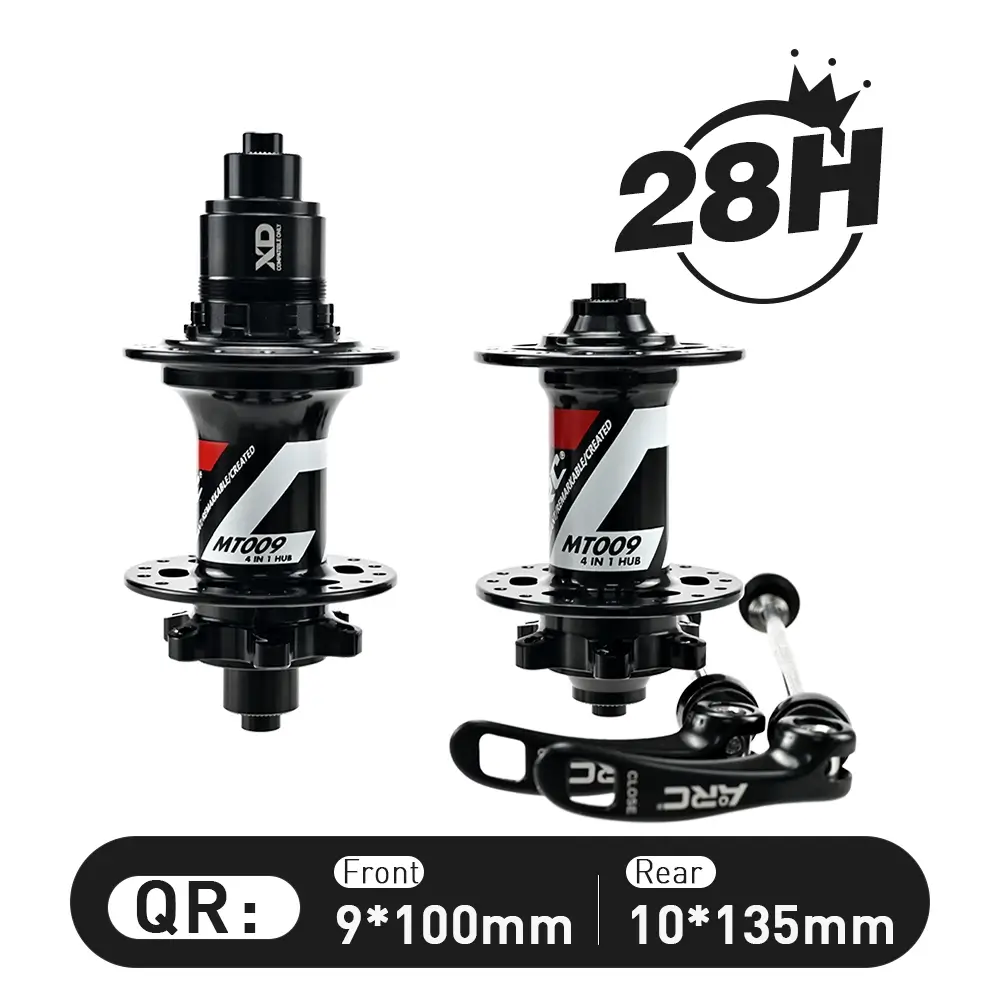

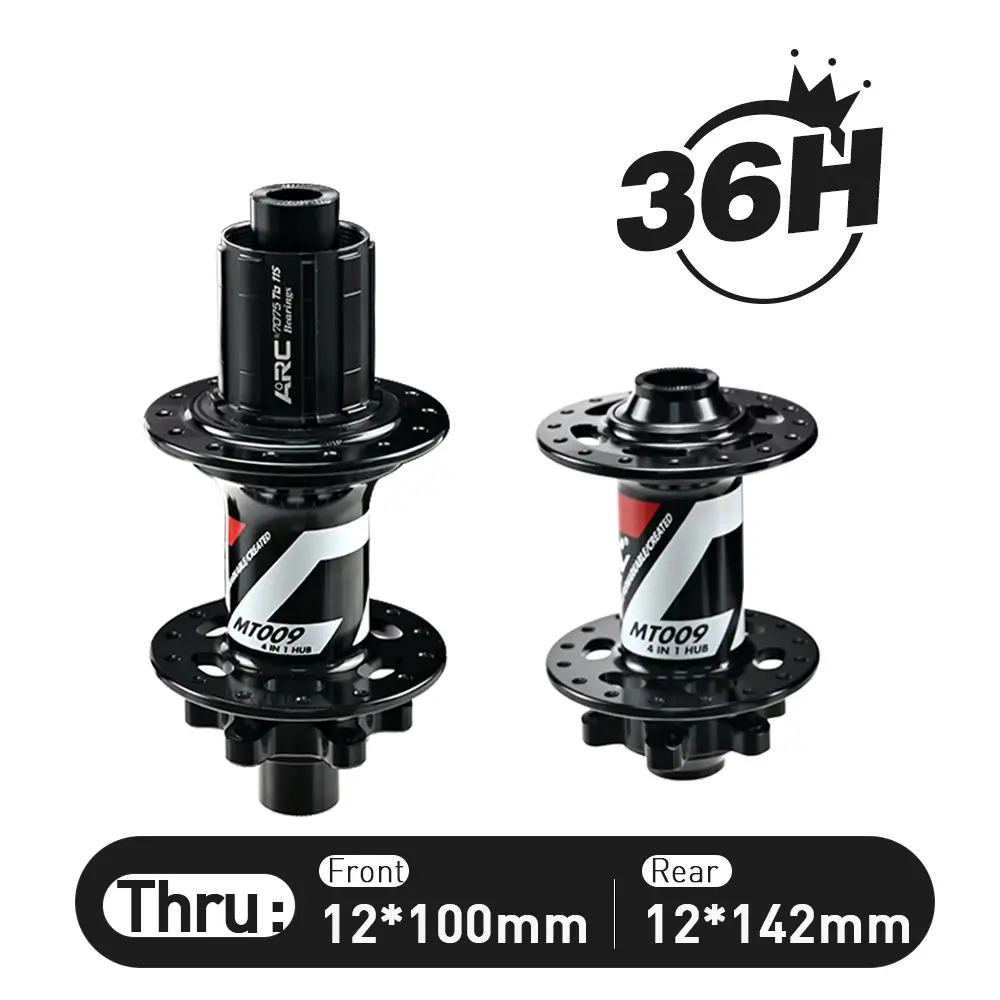

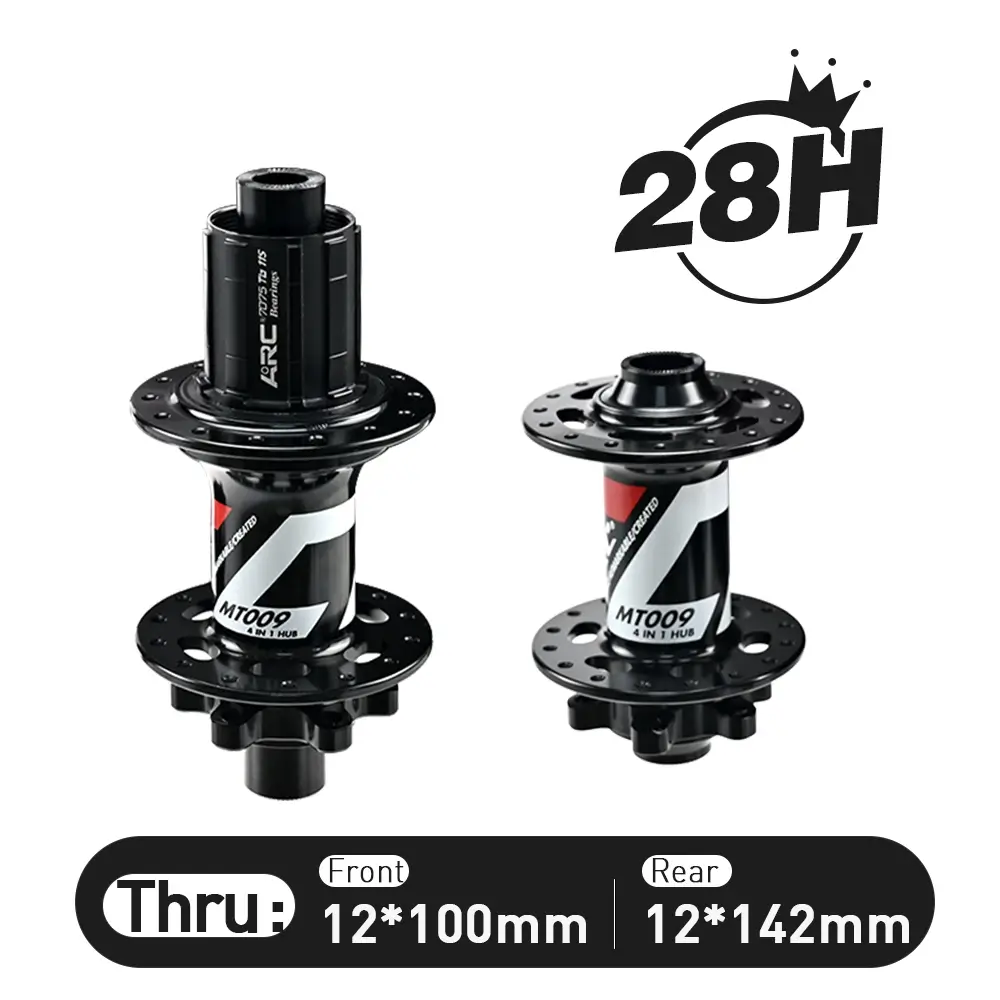

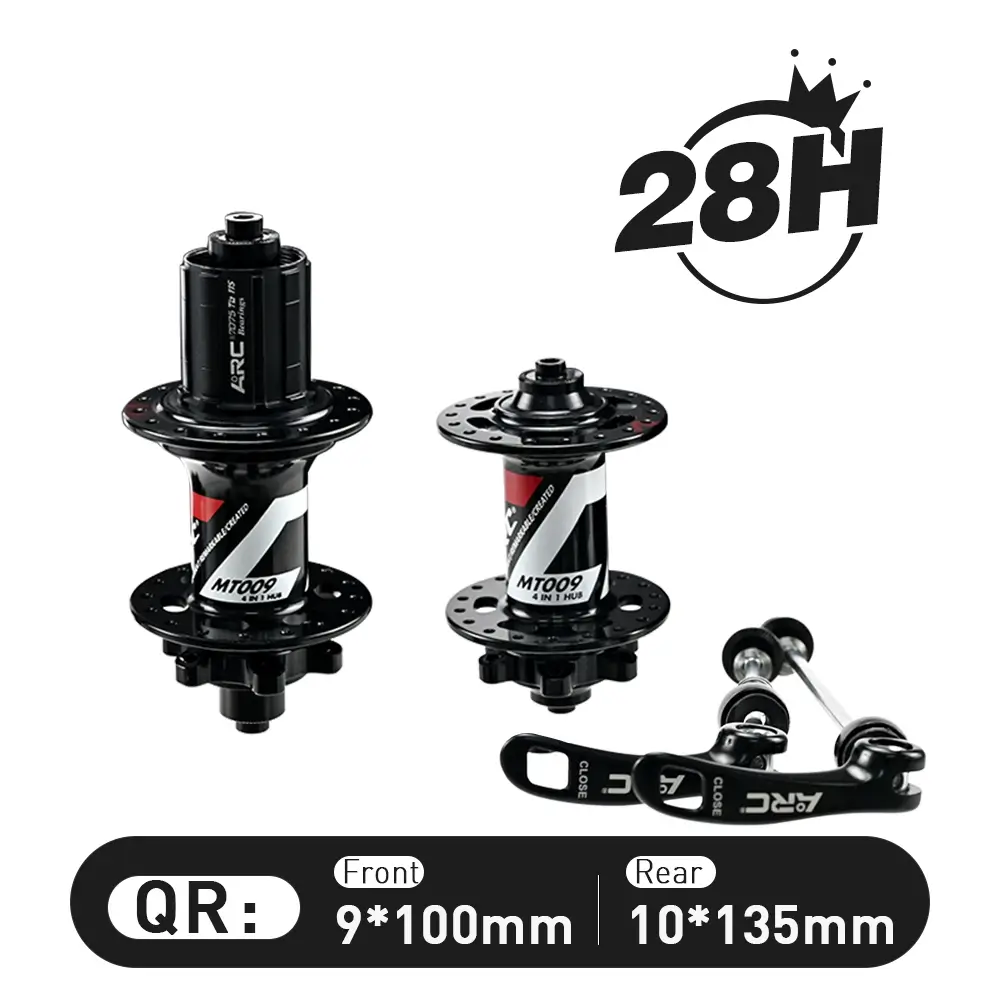

| Other Spoke Hole Options | 28H / 36H (Subject to Availability) |
| Front Flange P.C.D. | 58 mm (L/R) |
| Rear Flange P.C.D. | 58 mm (L/R) |

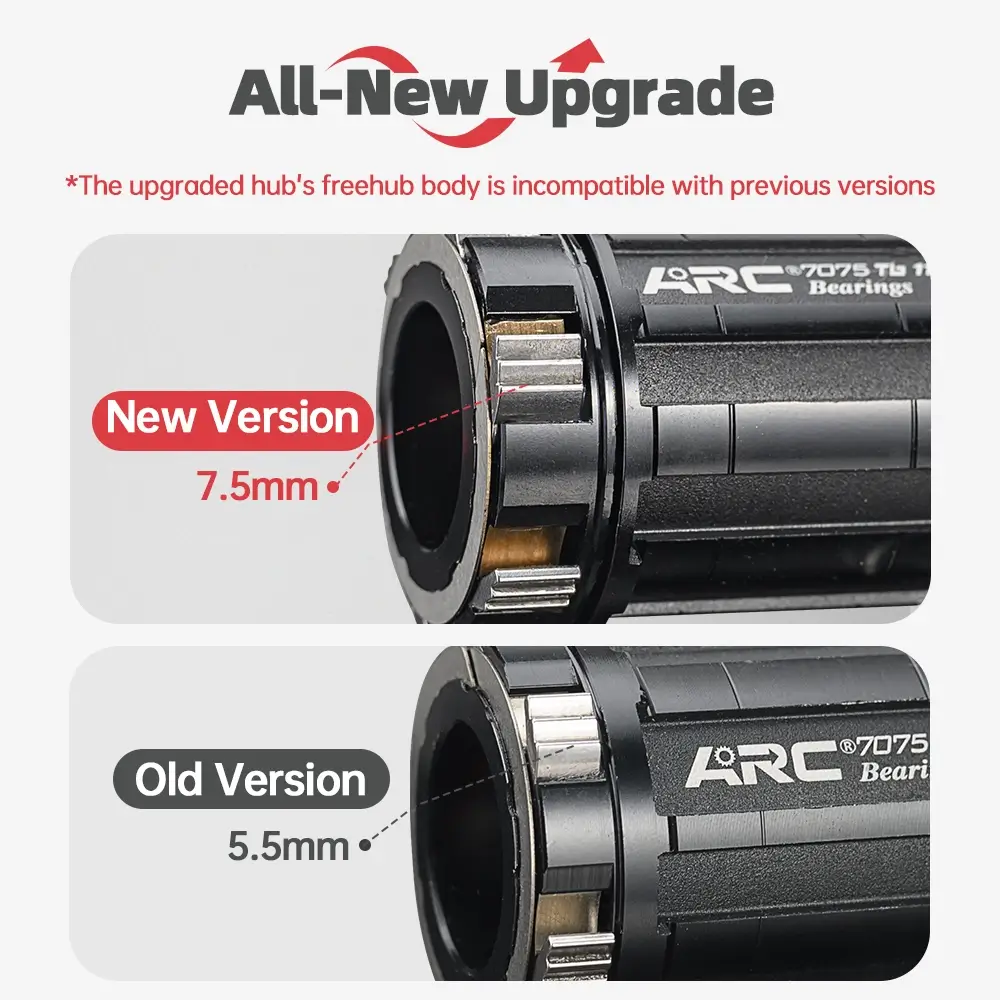

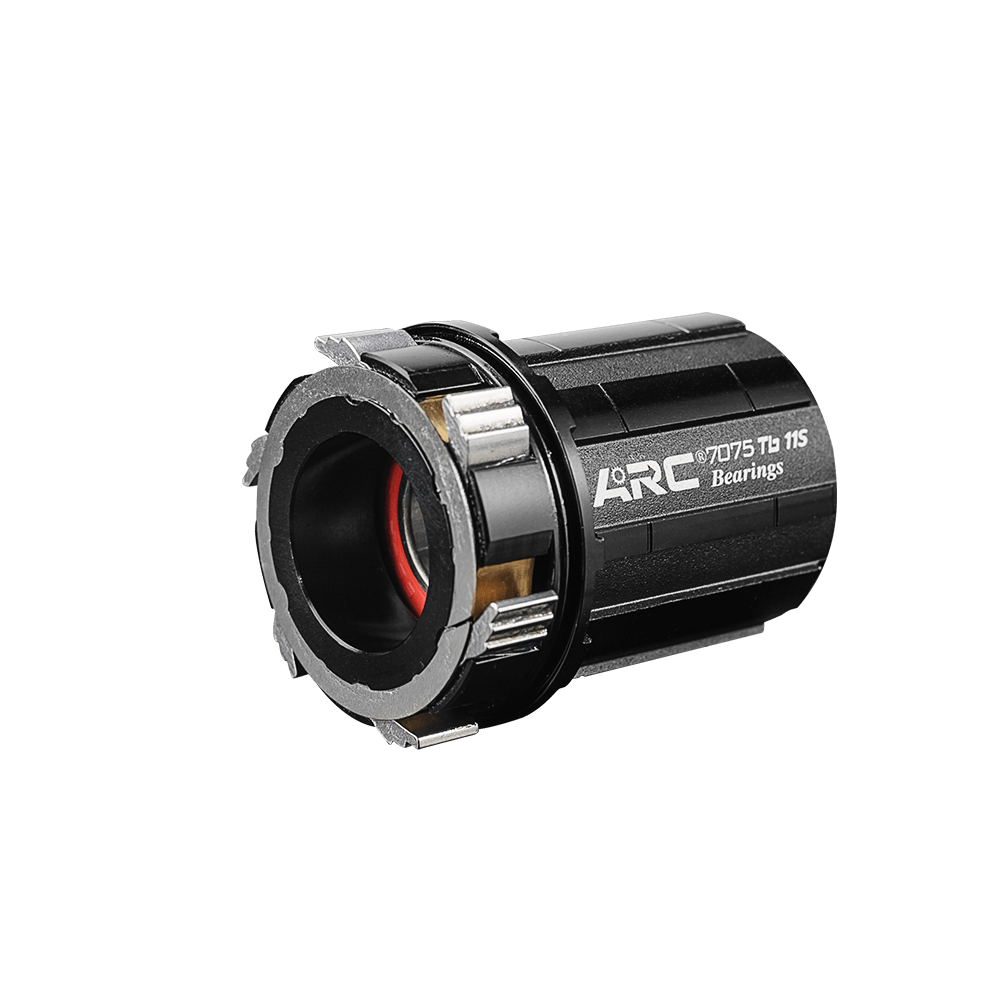

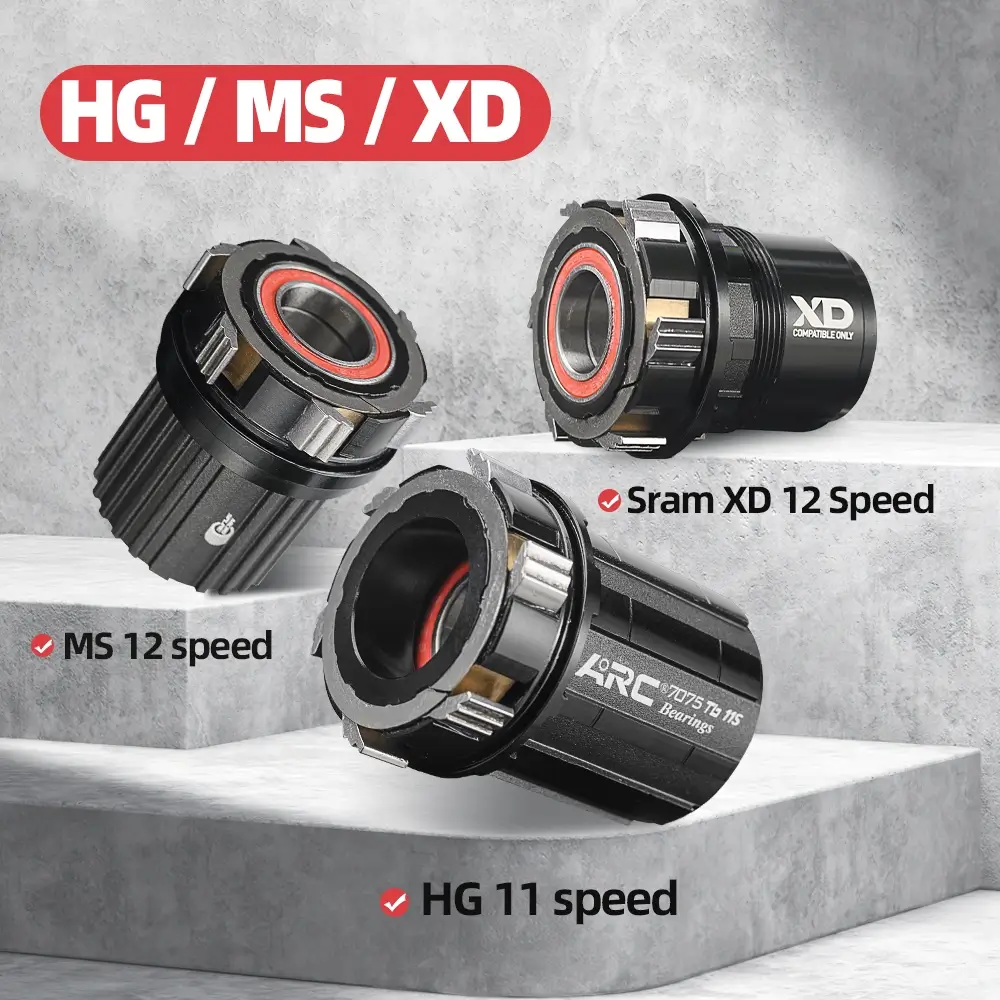

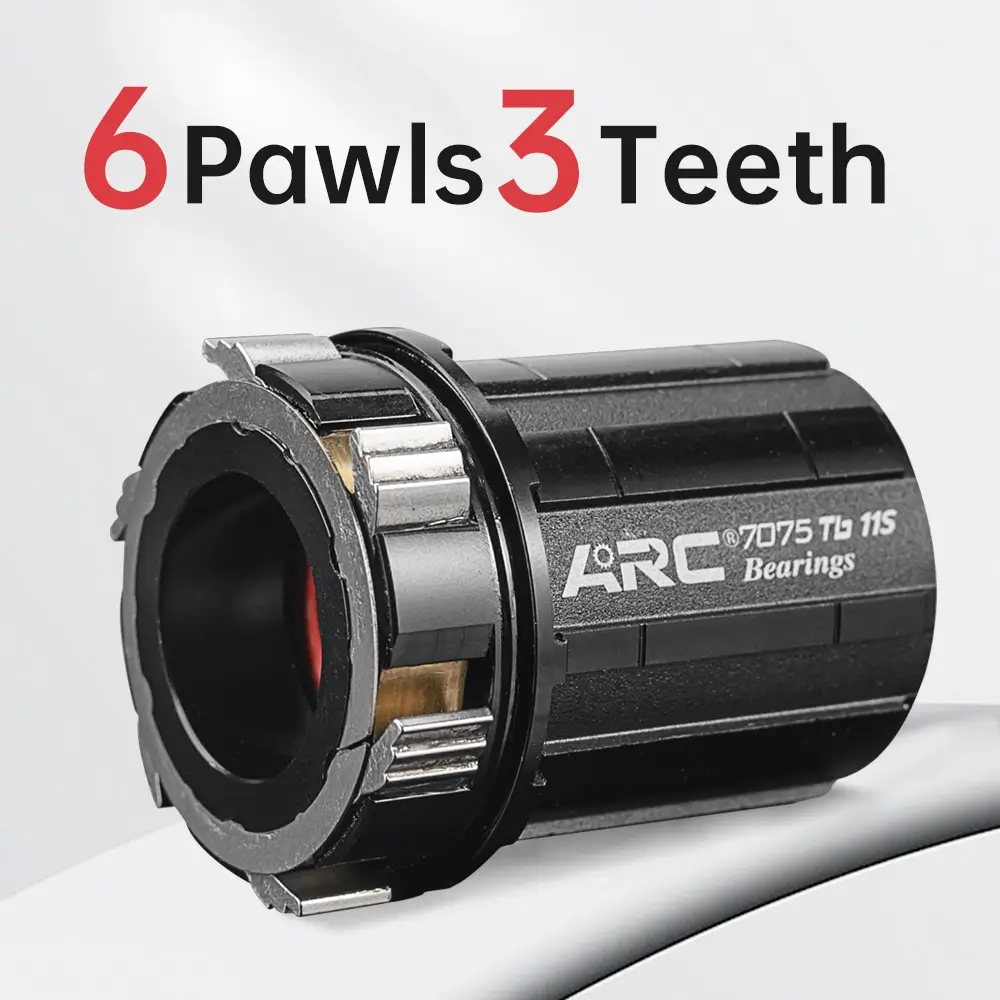

| Freehub Type | Shimano HG |
| Cassette Compatibility | Shimano HG 8–11 Speed (Depending on Cassette Model) |

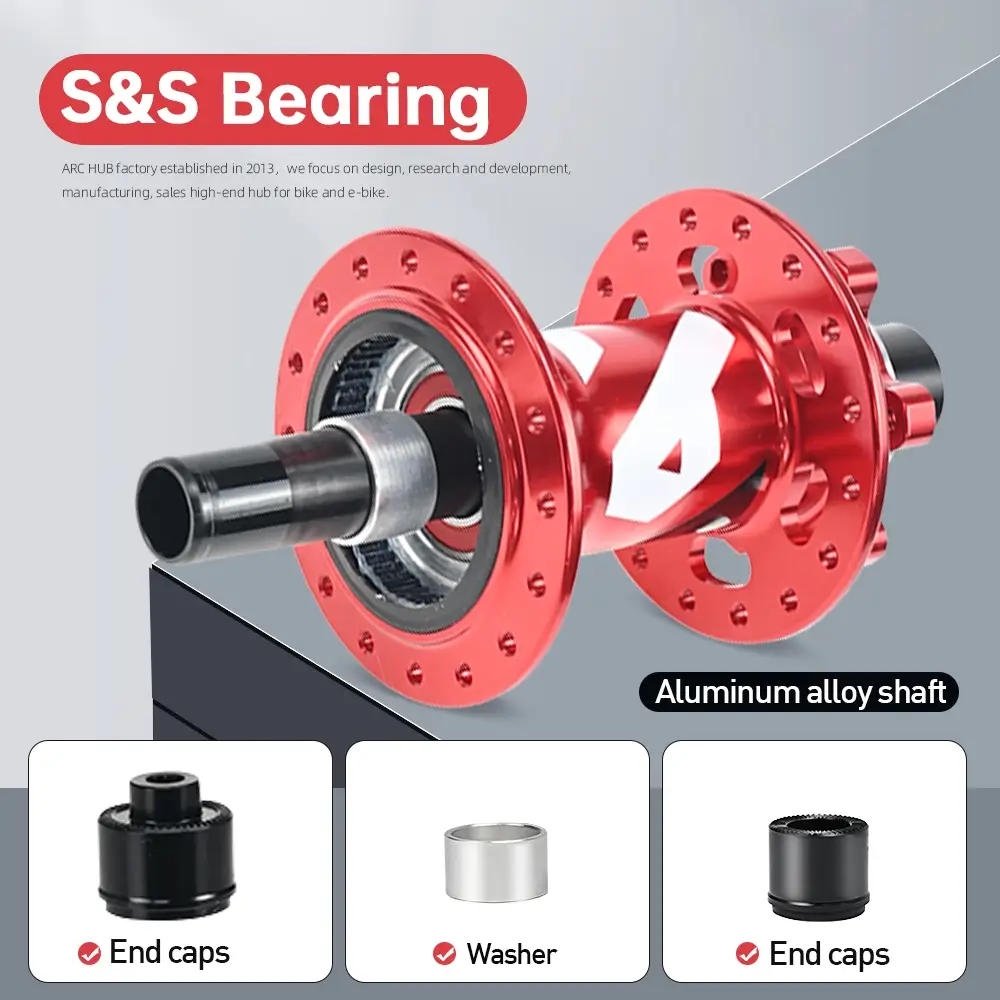

| Bearing Type | Sealed Bearings |
| Front Bearings | 2 Sealed Bearings |
| Rear Bearings | 4 Sealed Bearings |

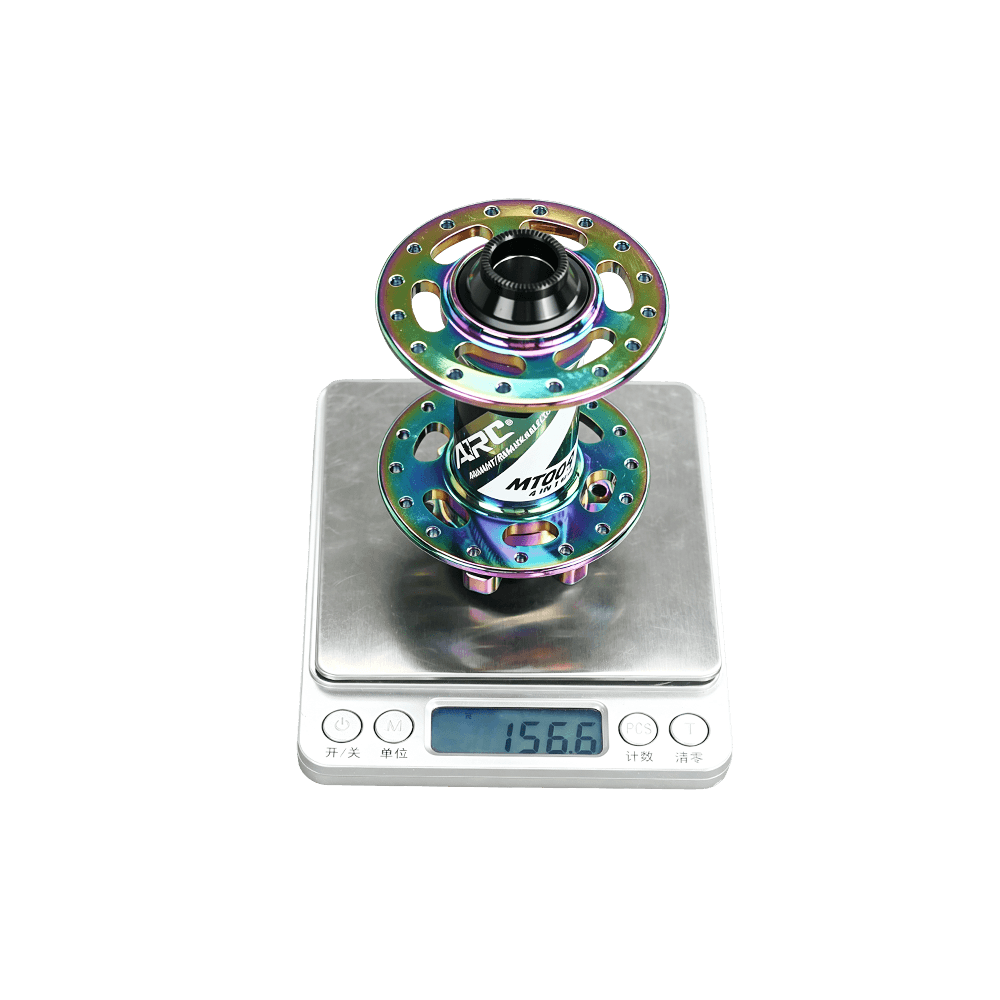

| Front Hub Weight | 156 g ± 5 g |

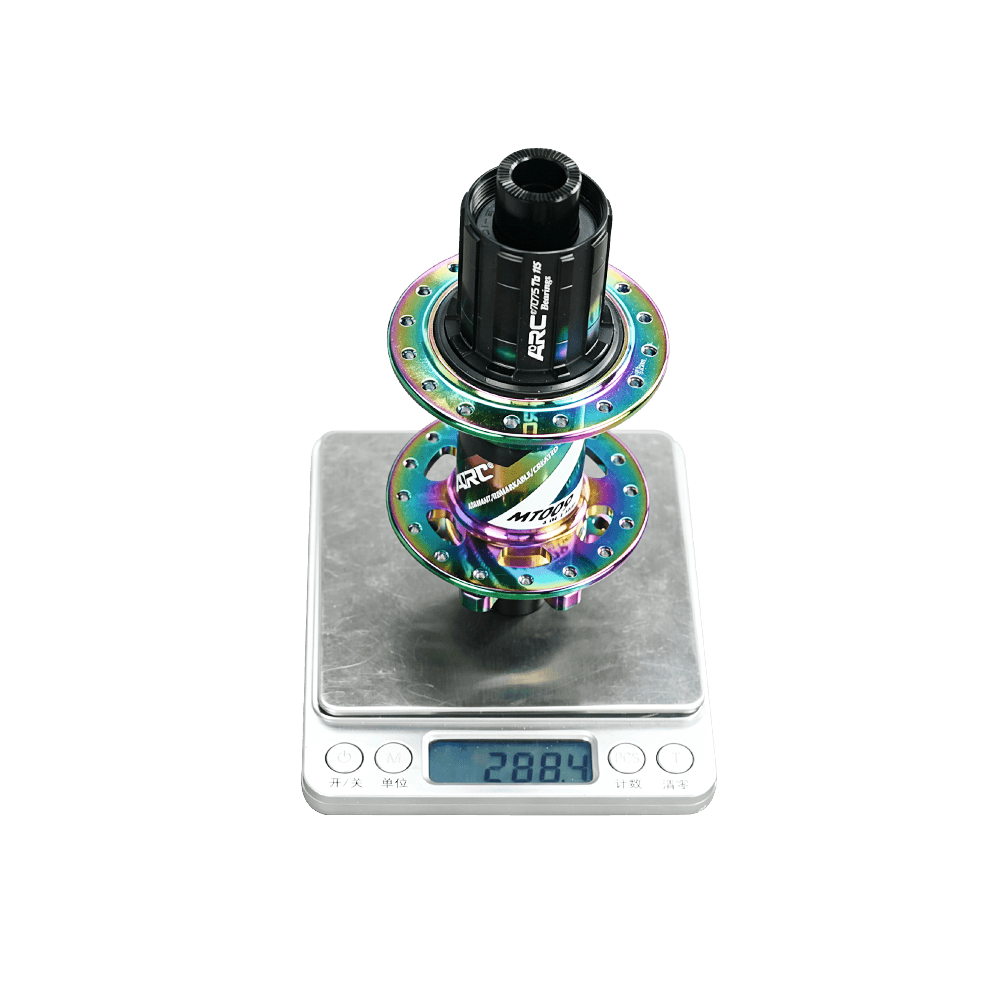

| Rear Hub Weight | 288 g ± 5 g |
| Total Set Weight | 444 g ± 5 g |

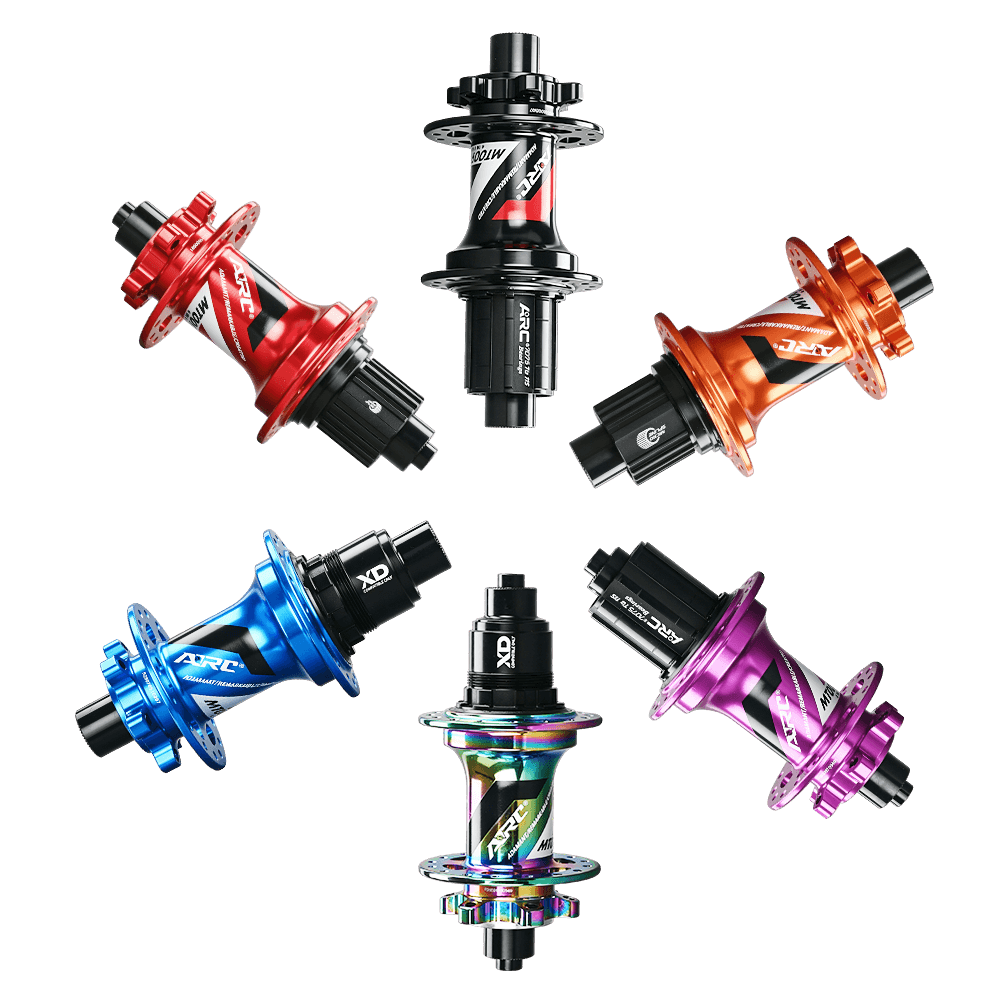

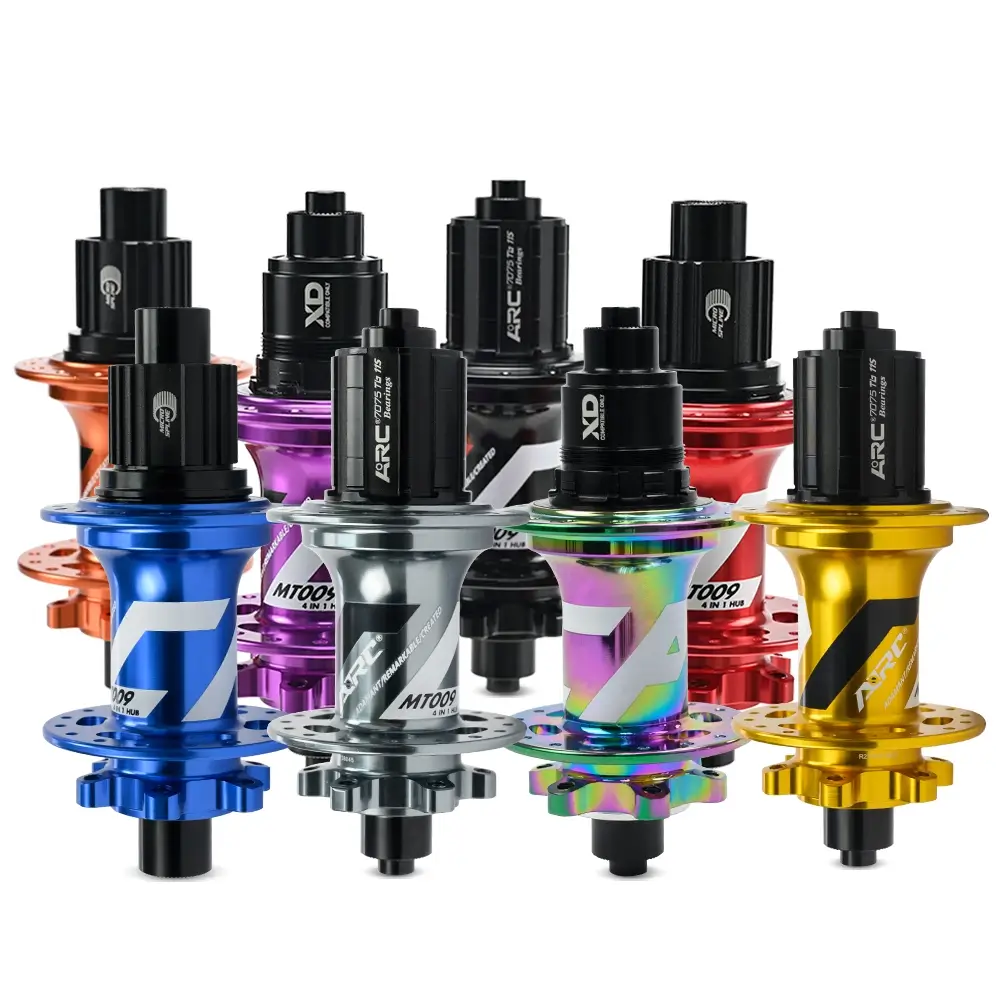

| Color | Customizable |
| Country of Origin | Jiangsu, China |

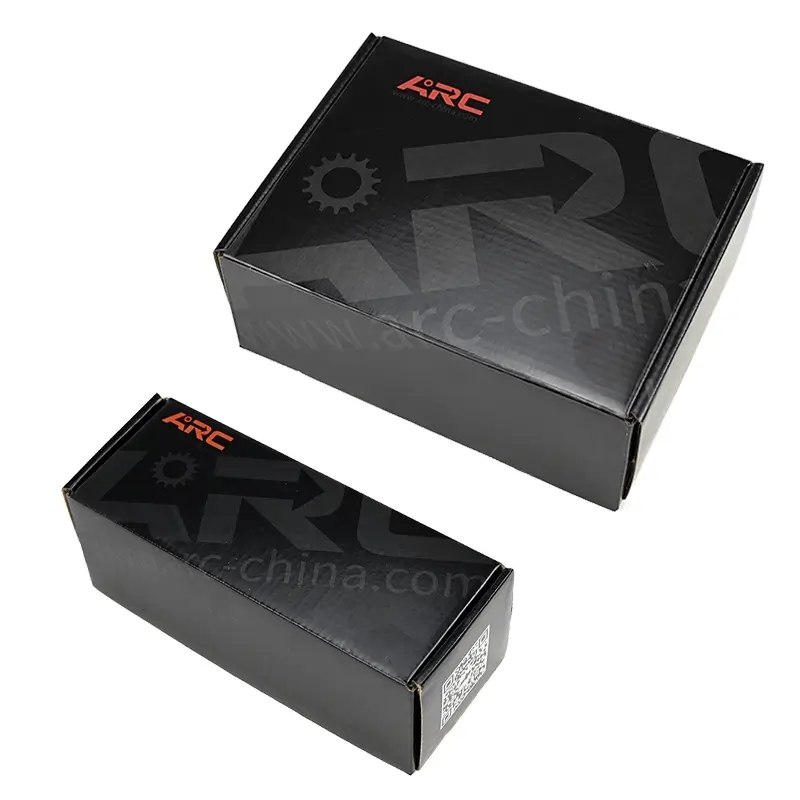

| Set Package Type | 1 Set (Front + Rear) |
| Package Dimensions (Per Set) | Approx. 22 × 17 × 9 cm |
| Package Gross Weight (Per Set) | Approx. 0.8 kg |
| Single Hub Package Type | 1 Hub (Front or Rear) |
| Single Hub Package Dimensions | Approx. 22 × 9 × 9 cm |
| Single Hub Package Gross Weight | Approx. 0.6 kg |
